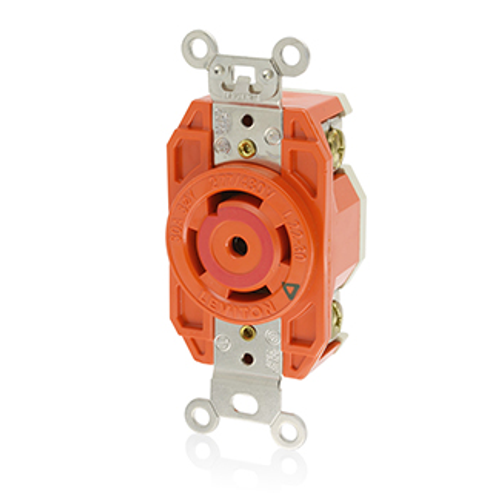

Main product image of 30A, 277/480V 3-Phase Y, NEMA L22-30R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground (Orange)
Magnifying glass
Hover image to zoom

30A, 277/480V 3-Phase Y, NEMA L22-30R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground (Orange)

Brand:
Leviton
SKU:
2820-IG
Rating:
(0)
Q&A:
(0)
30A, 277/480V 3-Phase Y, NEMA L22-30R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground (Orange)
Magnifying glass
Hover image to zoom
$42.60 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Valox 357
Product Highlight: Color
Orange
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Amperage
30 Amps

Description

–
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • L22-30R

Specifications
  • RoHS Compliant: TRUE
  • Warranty: Limited Lifetime Warranty
  • Strap Material: Nickel-Plated Brass
  • Pole: 4
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Ground Contacts: Brass
  • Standards and Certifications: UL/CSA
  • CSA: C22.2 No. 42
  • Cover Material: Valox 357
  • NOM: 57
  • Grounding: Isolated Ground
  • Flammability: Rated V-2 per UL 94
  • NEMA: WD-6
  • Ground Clips: Nickel-Plated Brass
  • Dielectric Voltage: Withstands 2000V per UL498
  • Terminal Accom.: 14-8 AWG
  • Current Limiting: Full Rated Current
  • Terminal Clamps: Zinc-Plated Brass
  • Body Material: Valox 357
  • Environment: Corrosive
  • Country of Origin: Mexico
  • Line Contacts: Brass .040 Thick
  • Grounding Screw: Brass 8-32
  • Face Material: Nylon 66/6Polyamide
  • Brand: V-0-Max
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • At Rated Voltage: 10 HP
  • Terminal Screws: Brass 10-32
  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Termination: Back & Side
  • Phase: 3-Phase WYE
  • UL Fed Spec: W-C-596
  • UL: 498
  • ANSI: C-73
  • Wire: 5
  • Screw Terminal Torque: 14-18 in-lbs
  • Voltage: 277/480 VAC
  • Amperage: 30 A
  • Feature: Isolated Ground
  • Base Material: Nylon
  • Color: Orange
  • Operating Temperature: -40 °C to 60 °C

Specs

–
NEMA Rating:

WD-6

Terminations:

Back Wire

Side Wire

Poles:

4

Series:

V-0-Max

Material:

Valox 357

Color:

Orange

Warranty:

Lifetime Limited

Ground:

Isolated Ground

Country of Origin:

Mexico

Amperage:

30
