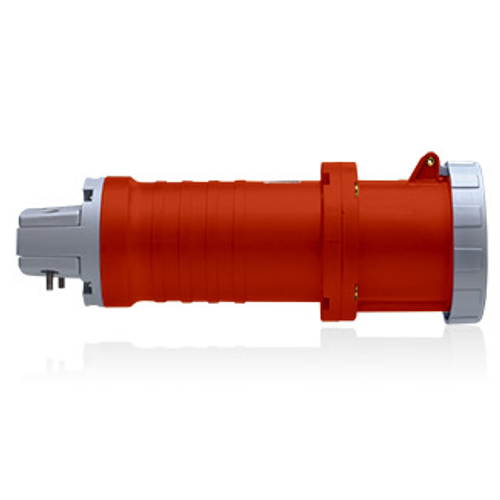

100A, 480V 2P, 3W, North American Pin & Sleeve Connector, IP67, Watertight, RED
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$601.87 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Red
100 Amps
2 years Warranty
Valox 357
Description
–
Features
- External Screws: Acid-Proof S/S
- Flammability: Rated V-0 per UL 94
- Corrosion Resistance: Ferrous parts immersed in 20 °C, 10 percent ammonium chloride solution for 10 min
- Color: Red
- Dielectric Voltage: 3000V for 1 min.
- Contact Carrier: Reinforced Nylon
- RoHS Compliant: TRUE
- Pole: 2
- Device Type: Connector
- UL Listed: 1682 and 1686
- IEC Rating: 60309-1 and 60309-2
- Gland Cap: Valox 357
- Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25 °C water
- Country of Origin: Please Contact Customer Service
- Body Material: Valox 357
- Terminal Screws: Stainless Steel
- CSA Certified: C22.2 No 182.1
- Current Interrupting: Certified for current interrupting at full rated current
- Amperage: 100 A
- IP Rating: IP67/IP69K
- Crush Test: 250lbs for 1 min after -25 °C for 6 hrs
- Internal Cord Clamp Assembly: Thermoplastic
- Configuration: North American
- Cable Secureness: Force: 150lb, Torque: 2.0 ft-lb, Max Disp: <= 3/32"
- Cover Eyelet: Nickel-Plated Brass
- Temperature Rise: Max 30 °C temp rise at full-rated current after 50 cycles of OL at 150% rated current
- Insulation Resistance: 500V for 1 min; >= 5M
- Voltage: 480 VAC
- Sleeve Spring: Stainless Steel
- Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
- Grommet/Gasket: Chloroprene
- Warranty: 2-Year Limited
- Cover with Arm: Valox 357
- External Cord Clamp Assembly: Valox 357
- CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
- Minimum Withdrawal Force: 20lbs
- Arm Spring: Performance Grade Stainless Steel
- Impact Resistance: Drop from 30" 8 times after conditioning to -25 °C for 6 hrs
- Wire: 3
- Internal Screws: Zinc-plated steel
- Phase and Ground Sleeves: Brass
- Cord Range: .950 - 1.875
Specs
–
| Color: | Red |
|---|---|
| Poles: | 2 |
| Amperage: | 100 |
| Product Type: | Connector |
| Warranty: | 2 years |
| Material: | Valox 357 |
