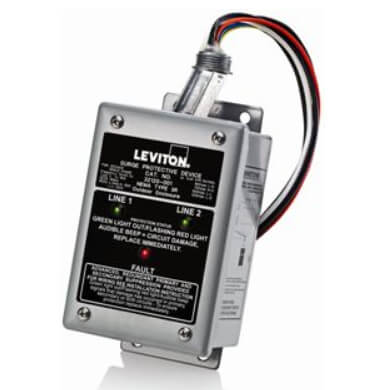

1 Phase Panel Mounted, 4-Mode Surge Protective Device, NEMA 3R (120/240V)

120/240V Single Phase, Surge Panel, Decora Home Control & X10 Compatible, NEMA 3R Enclosure, UL 1449 3rd Edition Type 2
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications:

• EMI/RFI Noise Rejection: (-20 to -40 @ 1.5K - 1.2MHz)
• Frequency: 50/60Hz
• Recommended Circuit Breaker Rating: 20A, 120/240V
• Surge Technology: 40mm MOV Design
• Voltage Configuration: 120/240 V, Single (Split) Phase
• Enclosure: Type 3R
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -10°C to 60°C
• Relative Humidity: 5% to 95% non-condensing
• Storage Temperature Range: -20C to 85C
• Outer Enclosure: Powder Coated Steel
• Connection Type: Parallel - Hardwired via 12 AWG Wire
• Diagnostics: LED
