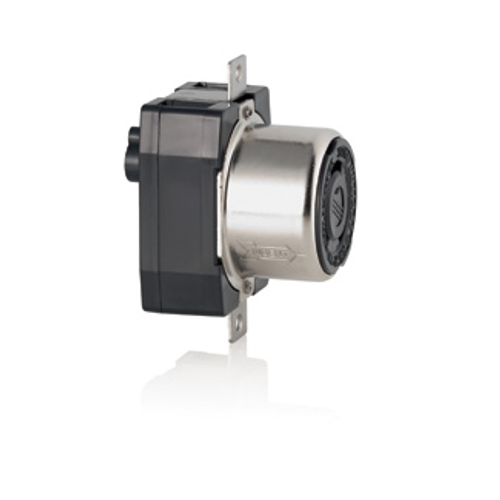

50A, 250V DC/600V AC, Non-NEMA, 3P, 4W (Black) & White Locking Flush Mount Receptacle, Grounding (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$63.89 each
In Stock
Get 14 Thu, Jun 18
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
- Grounding Screw: Brass
- Terminal Accom.: #10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
- Terminal ID: X, W, Y, Z and Green for ground
- Pole: 3
- Dielectric Voltage Withstand: 2000V minimum per UL 498
- Terminal Screws: Brass
- Environment: Dry
- UL Fed Spec WC-596: File E13399
- Maximum Working Voltage: 250V DC/600V AC as rated
- UL 498: File E13399
- Shroud: .062inch thick Nickel Plated Steel
- ANSI: C-73
- Mounting Screws: SS 302/304
- NEMA: WD-6
- Mounting Strap: Single piece SS 302/304
- Voltage: 250 VAC
- Assembly Rivets: SS 302/304
- Strap Material: Nickel-Plated Brass
- Back Cover: Reinforced Nylon
- Contact Rivet: Brass
- Face Module: Reinforced Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Face Material: Nylon
- Warranty: Lifetime Limited
- Terminal Set Screw: SS 302/304
- Current Interrupting: Certified for current interrupting at full rated current
- Clamp Nuts: Brass
- Amperage: 50 A
- CSA C22.2 No. 42: File 152105
- UL498: File E13399
- Base Material: Nylon
- Yoke: Brass
- Flammability: Rated V-0 per UL 94
- RoHS: Compliant
- Product ID: Ratings and Catalogue No. molded into face
- Operating Temperature: -40 °C to 75 °C
- Line Contacts: Brass
- Box Terminal: 0.062inch thick Copper
- Connector Contact - Binding Plate: 0.100inch thick Brass
- Grounding: Grounding
- Country of Origin: Mexico
- Termination: Back & Side
- Body and Contract Carrier: Reinforced Nylon
- Wire: 4
- Brand: Black and White
- Device Type: Locking Receptacle
- Color: Black
- Standards and Certifications: UL
- RoHS Compliant: FALSE
- NOM: 57
- Temperature Rise: Max 30 ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Connector Contact - Spring: 0.041inch thick Brass
Specs
–
| Country of Origin: | Mexico |
|---|
