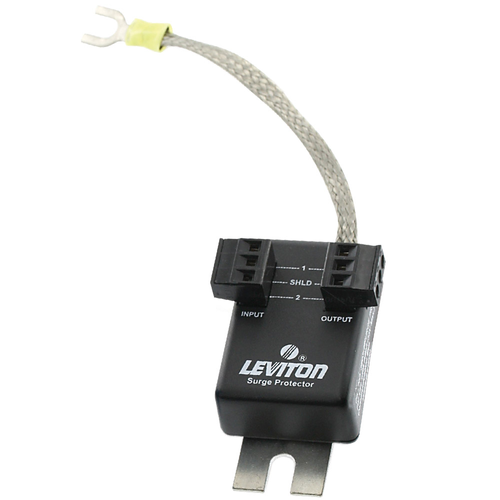

9.6V Dc, Pole, Wire, Communication Module SuRGe Protective Device
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$207.94 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 years Warranty
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Specifications
- Wiring: 3-Pin Header
- Circuitry: MOV-Based Suppression
- RoHS Compliant: FALSE
- MCOV: 81V
- Ground Tab Material: Plated Steel
- Clamping Voltage: 12Vpk
- Voltage: 9.6 VDC
- Type: Blue Hose Network
- Relative Humidity: 0 to 95% Non-Condensing
- Warranty: 5-Year Limited
- Maximum Capacitance: 14.48pF (L-G) 7.48pF (L-L)
- Base-Plate Material: Brushed Brass
- Enclosure Rating: NEMA 1
- UL: 497B Listed
- Operating Temperature: -40 °C to 60 °C
- Country of Origin: Mexico
- Case Material: ABS
- Altitude: -1,000 to 15,000 ft
- Storage Temperature: -40C to 90C
- Standards and Certifications: UL 497B/CSA/ANSI/IEEE/CE
- Max 1-Pulse Transient Current L-G: 1kA
- Maximum Surge Current: 1kA
- Mounting Type: Surface
- CE: Marked
- Maximum DC Operating Voltage: (-)4.5 to 4.5
Specs
–
| Warranty: | 5 years |
|---|---|
| Country of Origin: | Mexico |
