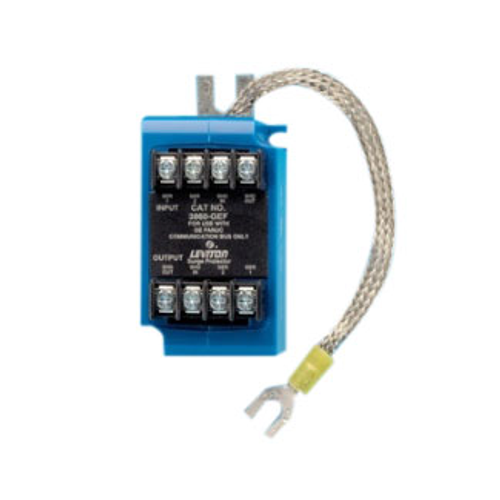

100v Dc, Pole, Wire, Communication Module SuRGe Protective Device, Ge Fanuc Control Bus Network
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$219.64 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 years Warranty
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Specifications
- Enclosure Rating: NEMA 1
- Wiring: 4-Position
- Mounting Type: Surface & DIN-Rail
- Circuitry: MOV-Based Suppression
- Warranty: 5-Year Limited
- Ground Tab Material: Tin-Plated Brass
- Storage Temperature: -20 °C to 85 °C
- Operating Temperature: -10 °C to 85 °C
- Maximum Surge Current: 1kA
- Standards and Certifications: UL 497B/CSA/ANSI/IEEE/CE
- Voltage: 100 VDC
- Max 1-Pulse Transient Current L-G: 1kA
- Type: GE Fanuc Control Bus Network
- MCOV: 205V
- Maximum Capacitance: 20pF (L-G) 20pF (L-L)
- Altitude: -1,000 to 15,000 ft
- DIN-Rail Material: Polycarbonate
- RoHS Compliant: FALSE
- Country of Origin: Mexico
- Clamping Voltage: 205.4Vpk (L-G) 60.7Vpk (L-Shield)
- Case Material: Polycarbonate
- Maximum DC Operating Voltage: 100.4VDC (L-G) 16.4VDC (L-Shield)
- Relative Humidity: 0 to 95% Non-Condensing
- UL: 497B Listed
- CE: Marked
Specs
–
| Warranty: | 5 years |
|---|---|
| Country of Origin: | Mexico |
