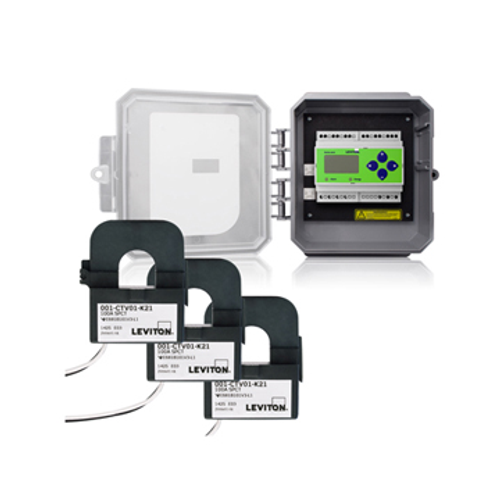

Outdoor Bi-Directional 3PH 3W/4W Modbus Submeter 3 200A Split Core Current Transformers (CT)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,575.90 each
Out of Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200 Amps
Description
–
Features
Specifications
- 50/60 Hz
- Renewable energy applications such as solar panels and wind
- Load profiling and benchmarking
- Industrial monitoring
- DIN rail mount or NEMA 4X enclosure
- Measurement and verification
- Industrial temperature range: -22-158°F
- Energy monitoring for AMR/BAS/BMS/EMS systems
- The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors. Do you have a question about submetering? Contact us to learn more.
- Green building initiatives and government mandates
- Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Rogowski CT Options (20-5,000A)
- Energy conservation and cost reduction
- Bidirectional monitoring
- Tenant cost allocation
Specifications
- CTs Included: 3 Split Core CTs
- Meter Configuration: Single Meter
- Amperage: 200 A
- Product Line: Series 4100 Kit
- Enclosure: Outdoor (NEMA 4X)
- RoHS Compliant: FALSE
- Voltage: Universal Bi-Directional 3-phase 3W/4W
- Country of Origin: United States
- Product Type: Submeter and Current Transformer(s)
- Communication: ModBus/RTU, BACnet MS/TP
Specs
–
| Amperage: | 200 |
|---|
