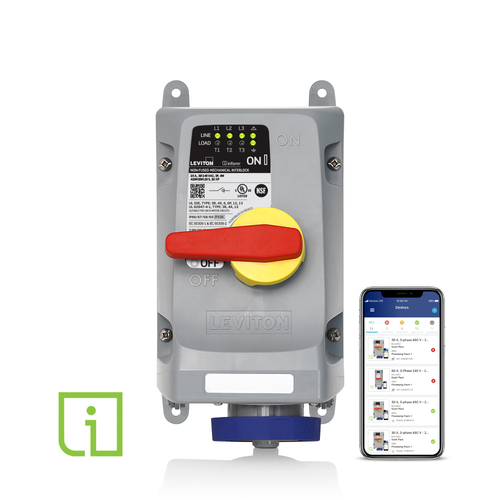

20A 240V 3PH, 3P 4W IEC 60309-1 & 60309-2 Pin & Sleeve Interlock, Local Monitoring (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,003.72 each
Out of Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
5 years Warranty
Blue
Description
–
Features
Specifications
- Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts
- The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available)
- Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure
Specifications
- Configuration: North American
- Current Interrupting: Certified for current interrupting at full-rated current and voltage
- Housing Material: PBT+PC
- Device Type: Non-Fused Mechanical Interlock
- Mold Stress Relief: 70 °C for 7 hours without deformation
- Phase: 3-Phase
- Endurance: 6,000 cycles under load
- Housing Screws: 303 Stainless Steel
- Horsepower Rating: 10 HP
- Handle Material: PBT+PC with TPE Overmold
- Pole: 3
- Voltage: 240 VAC
- Dielectric Voltage: 2200V for 1 minute
- Color: Blue
- Gasket Material: Chloroprene
- Crush Test: 100 lbs for 1 minute per surface
- Contact Material: Nickel-Plated Brass
- Series: LEV Series
- Operating Temperature: -40 °C to 75 °C
- Warranty: 5-Year Limited
- UL: UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746
- IP Rating: IP66, IP67, IP68, IP69, IP69K
- IEC Rating: IEC 60309-1, 60309-2, 60309-4
- CSA: C22.2 No 94.1-07
- RoHS Compliant: FALSE
- Amperage: 20 A
- NEMA Rating: 3R, 4X, 12
- SCCR: 10kA
- Cold Impact: 5 ft-lb impact at -31 °F for 3 hrs per UL746C
- Wire: 4
- NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- Feature: LED Indication
- Flammability: Rated V-0 per UL 94
- Gasket Aging: 70 °C for 168 hr per UL50E
- Country of Origin: Mexico
- UV Resistance: UV stabilized F1 rated enclosure
Specs
–
| Product Type: | Non-Fused Mechanical Interlock |
|---|---|
| Amperage: | 20 |
| Poles: | 3 |
| Warranty: | 5 years |
| Color: | Blue |
| Country of Origin: | Mexico |
