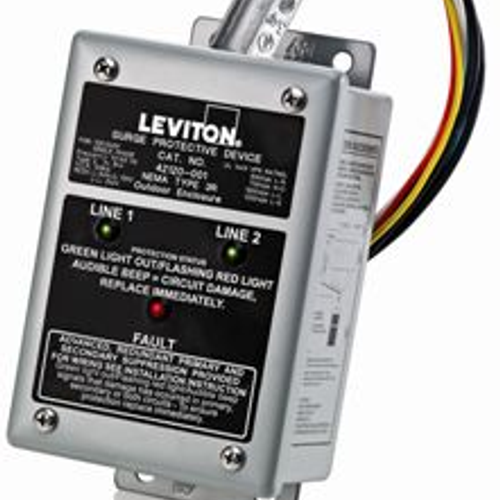

Type 2 Split Phase SuRGe Panel w/ Enhanced Noise Filtering
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$842.55 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 years Warranty
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Specifications
- MCOV L-G: 300
- Enclosure: Type 3R
- VPR L-G: 1200
- Connection Type: Parallel - Hardwired via 12 AWG Wire
- Noise Rejection: -30 to -40 dB at 10kHz-10MHz
- UL1449 Impluse 6kV/500A L-N/N-G/L-L: 400/500/800
- Outer Enclosure: Powder Coated Steel
- Operating Temperature: -10 °C to 60 °C
- Replaceable Modules: No
- Country of Origin: Mexico
- Relative Humidity: 5% to 95% non-condensing
- Surge Counter: No
- UL1449 3rd Edition: cULus Listed Type 2
- EMI/RFI Noise Rejection: (-30 to -40 @ 10K - 10MHz)
- VPR L-L: 1000
- Frequency: 50/60Hz
- Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
- Recommended Circuit Breaker Rating: 30A, 120/240V
- Nominal Discharge Current Rating: 3kA
- Surge Technology: 40mm MOV Design
- Voltage Configuration: 120/208/240 V, Hi-Leg Delta
- ANSI/IEEE Category A, B and C: C-62.41 & 62.45
- Diagnostics: LED
- VPR N-G: 700
- Warranty: 5-Year Limited
- Maximum Surge Current, Per Mode (Per Phase): 80kA (160kA)
- Flammability: Rated V-2 per UL 94
- MCOV N-G: 150
- Short Circuit Current Rating: 100kA
- RoHS Compliant: FALSE
- MCOV L-L: 254
- Storage Temperature Range: -20C to 85C
- MCOV L-N: 150
- MCOV: 132V AC L-L 264V AC
- VPR L-N: 800
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Warranty: | 5 years |
