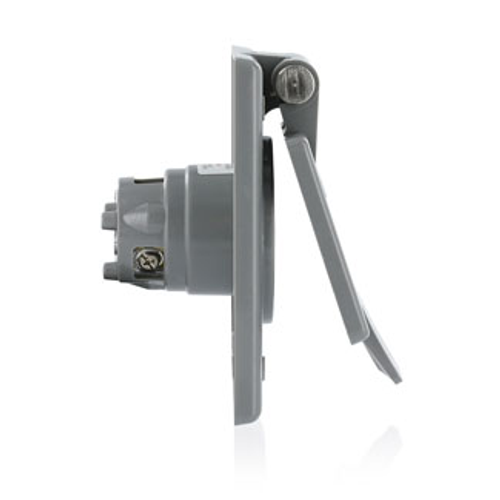

15A, 250V Power Outlet Receptacle, Locking Blade, Industrial Grade
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.90 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
Gray
Nylon
15 Amps
Description
–
Features
Specifications
- L6-15R
- Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Termination: Standard Wire Wells
- Warranty: 10-Year Limited
- Operating Temperature: -40 °C to 60 °C
- Strap Material: Nylon
- Cover and Plate Material: Glass-Filled Thermoplastic
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Grounding Screw: Brass 8-32
- Terminal Screws: Brass 10-32
- CSA C22.2 No. 42: File LR-16347
- Current Limiting: Full Rated Current
- RoHS Compliant: FALSE
- Face Material: Nylon
- Screw Terminal Torque: 10-14 in-lbs
- Line Contacts: Brass
- At Rated Voltage: 1-1/2 HP
- Flammability: Rated V-2 per UL 94
- Country of Origin: United States
- Body Material: Nylon
- Color: Gray
- UL498: File E13399
- Wire: 3
- Dielectric Voltage: Withstands 1500V per UL498
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Grounding: Grounding
- Terminal Accom.: 18-10 AWG
- Voltage: 250 VAC
- Pole: 2
- Amperage: 15 A
- ANSI: C-73
- NEMA: WD-6
Specs
–
| Warranty: | 10 years |
|---|---|
| Terminations: | Standard Wire Wells |
| Color: | Gray |
| Material: | Nylon |
| Amperage: | 15 |
| Poles: | 2 |
| NEMA Rating: | WD-6 |
| Ground: | Grounding |
