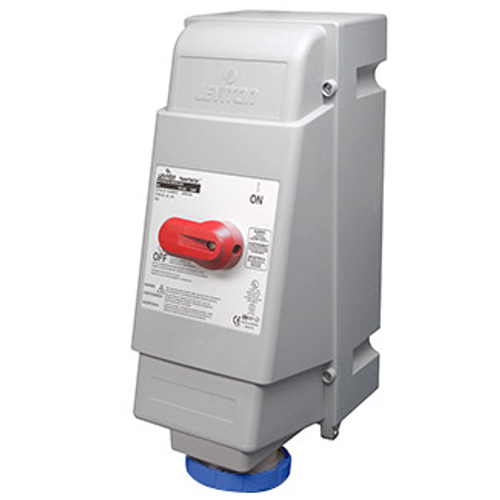

60A 240V 3PH, IEC 309-1 & 309-2, 3P 4W Interlock Pin & Sleeve Receptacle (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,120.21 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2 years Warranty
60 Amps
Blue
Description
–
Features
- Wire: 4
- Ground Contacts: Brass
- Impact: 1.2 lb ball dropped from 5 ft
- Conduit Grounding Plate: Zinc-Coated Steel
- Series: Standard Series
- Voltage: 240 VAC
- Handle Material: Valox 357
- Operating Temperature: -40 °C to 60 °C
- Phase: 3-Phase
- IP Rating: IP67/IP69K
- Dielectric Voltage: 1000 V plus rated voltage for 1-minute
- Pole: 3
- Cover with Arm: Valox 357
- Cold Impact: Same as above, after conditioning to -35C
- Warranty: 2-Year Limited
- CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
- Switch Material: Reinforced Nylon
- CSA: C22.2
- UV Resistance: Exposed plastic materials are UV stabilized
- Contact Carrier: Nylon
- Switch Contacts: Cadmium-Free Silver Alloy
- Switch Terminal Contacts: Brass
- RoHS Compliant: FALSE
- Rain: Type 3R per UL 50
- Gasket Material: Chloroprene
- Phase and Ground Sleeves: Brass
- Endurance: 6,000 cycles inductive motor type load
- Device Type: Mechanical Interlock
- Locking Ring: Valox 357
- Amperage: 60 A
- At Rated Voltage: 15 HP
- Current Interrupting: Certified for current interrupting at full rated current
- Mold Stress Relief: 70 ºC for 7 hours
- Housing Material: Valox 357
- Pullout: 18 lb pull on internal wires
- Country of Origin: Please Contact Customer Service
- Gasket Aging: 70C for 168 hours
- Dust: Type 12K per UL 50
- Flammability: Rated V-0 per UL 94
- Hosedown: Type 4X per UL 50
- Housing Screws: Stainless Steel
- Ground Buss: Brass
- IEC Rating: 60309-1 and 60309-2
- Actuator Material: Zinc-Coated Steel
- Color: Blue
- Neutral Buss: Brass
- Internal Screws: Zinc-plated steel
- Cover Eyelet: Nickel-Plated Brass
- Strength of Insulating Base and Support: 110% of specified tightening torque on terminal screws
- Crush Test: 100 lbs
- UL 98: Fused
- Configuration: North American
- UL: 231 & 1686
- Fuse Type: Class J Fuses
- Cover Locking Mechanism: Valox 357
Specs
–
| Warranty: | 2 years |
|---|---|
| Product Type: | Mechanical Interlock |
| Amperage: | 60 |
| Poles: | 3 |
| Color: | Blue |
