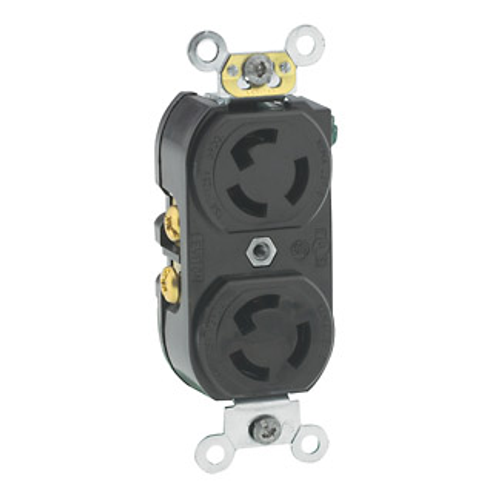

15 Amp-125V 2-Pole, 3-Wire, Duplex Flush Receptacle w/ 2 Hot Feeds and 1 Neutral Return, Self-Grounding, Back and Side Wired (Black)

Brand:
Leviton
SKU:
4702-IIR
Rating:
(0)
Q&A:
(0)
15 Amp-125V 2-Pole, 3-Wire, Duplex Flush Receptacle w/ 2 Hot Feeds and 1 Neutral Return, Self-Grounding, Back and Side Wired (Black)
Magnifying glass
Hover image to zoom
$22.29 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Black
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Material
Nylon
Product Highlight: Amperage
15 Amps

Description

–
Features
  • L5-15R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • NOM: 57
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Operating Temperature: -40 °C to 60 °C
  • Terminal Screws: Brass 10-32
  • Yoke: Zinc-Plated Steel
  • Body Material: Nylon
  • Pole: 2
  • Grounding Screw: Brass 8-32
  • Line Contacts: Brass .031 Thick
  • At Rated Voltage: 1/2 HP
  • Current Limiting: Full Rated Current
  • ANSI: C-73
  • Color: Black
  • Warranty: Limited Lifetime Warranty Warranty
  • Voltage: 125 VAC
  • Wire: 3
  • CSA C22.2 No. 42: File LR-406
  • RoHS Compliant: TRUE
  • Dielectric Voltage: Withstands 2000V per UL498
  • NEMA: WD-6
  • Flammability: Rated V-2 per UL 94
  • UL Fed Spec WC-596: File E13399
  • Amperage: 15 A
  • Country of Origin: Mexico
  • Terminal Accom.: 18-10 AWG
  • Strap Material: Steel
  • UL498: File E13399
  • Grounding: Self-Grounding
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Termination: Back & Side
  • Face Material: Nylon
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Screw Terminal Torque: 14-18 in-lbs

Specs

–
NEMA Rating:

WD-6

Ground:

Self-Grounding

Poles:

2

Color:

Black

Terminations:

Side Wire

Back Wire

Warranty:

Lifetime Limited

Material:

Nylon

Amperage:

15

Country of Origin:

Mexico
