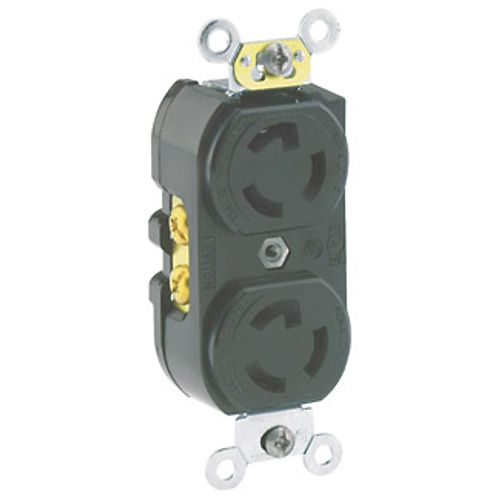

15A, 277V NEMA L7-15R, 2P, 3W, Duplex Locking Receptacle, Grounding (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.94 each
In Stock
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- L7-15R
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
- Grounding Screw: Brass 8-32
- Line Contacts: Brass .031 Thick
- Terminal Accom.: 18-10 AWG
- Terminal Screws: Brass 10-32
- Pole: 2
- Amperage: 15 A
- Strap Material: Steel
- Flammability: Rated V-2 per UL 94
- Warranty: Limited Lifetime Warranty Warranty
- ANSI: C-73
- Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Wire: 3
- Country of Origin: Mexico
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- NOM: 57
- NEMA: WD-6
- Operating Temperature: -40 °C to 60 °C
- Termination: Back & Side
- At Rated Voltage: 2 HP
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Body Material: Nylon
- Environment: Dry
- Device Type: Locking Receptacle
- CSA C22.2 No. 42: File LR-406
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- RoHS Compliant: TRUE
- UL Fed Spec WC-596: File E13399
- Yoke: Zinc-Plated Steel
- Voltage: 277 VAC
- Face Material: Nylon
- UL498: File E13399
- Screw Terminal Torque: 14-18 in-lbs
- Color: Black
- Grounding: Grounding
Specs
–
| Country of Origin: | Mexico |
|---|
