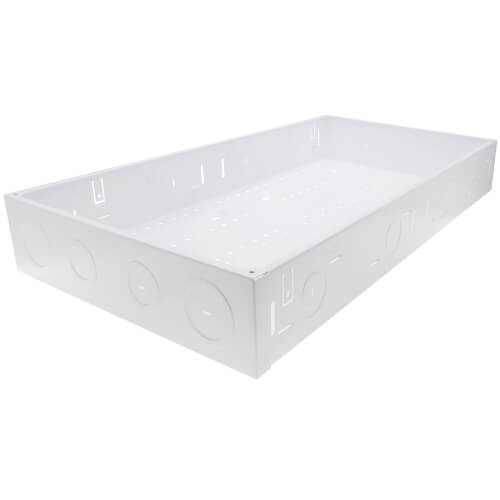

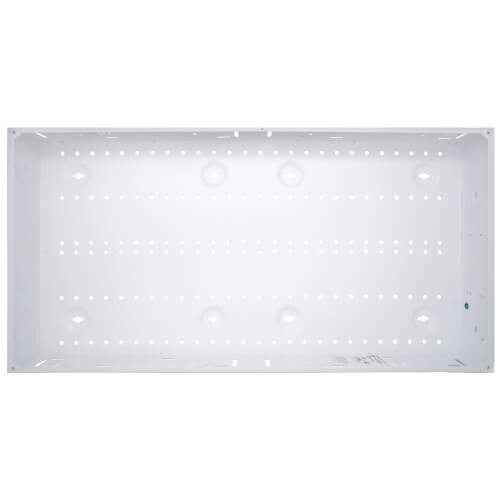

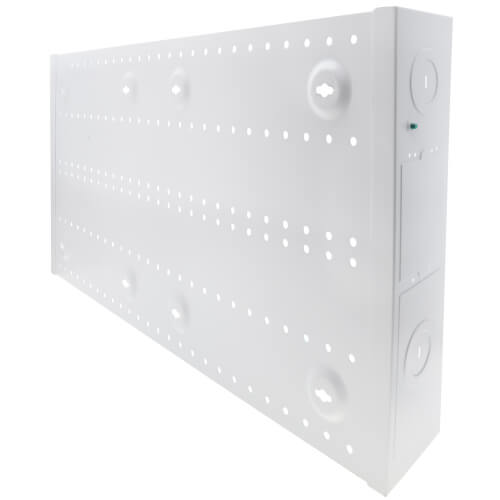

Series 280 Structured Media Center Enclosure Only - White

The Leviton Series 280 Structured Media Center Enclosure Only - White (47605-28N) serves single family homes as command central for communications, education, entertainment, and business needs. The 28" SMC can easily accommodate DSL and cable Internet modems, networking, cable and satellite video. They also serve VoIP, IPTV, fax, multiple telephone lines, video monitoring cameras, intercom, and distributed audio. By bringing every conceivable technology distribution point together in one place, these enclosures make running cable and managing media both simple and cost effective. Incorporate a hospital grade power quality module for maximum protection from line surges

Features:

• Positive stops on housing side walls prevent enclosure from falling through studs during installation
• One piece white steel unit hold full and half width expansion modules
• Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment
• Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts
• Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing
• Cut-out in base of enclosure for mounting single gang J-Box kit
• Six 3 Inch square self-healing foam grommets accommodate cable bundles

Specifications:

• Series: Series 280
• Item: Enclosure Only
• Height: 28 Inch
• Width: 14.38 Inch
• Depth: 3 Inch
• Gauge of Steel: 18 Gauge
• Paint Finish: Powder-Coated
• Max. Module Capacity: 8
• Notes: Module count dependent of the type used.
• Color: White
• Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
