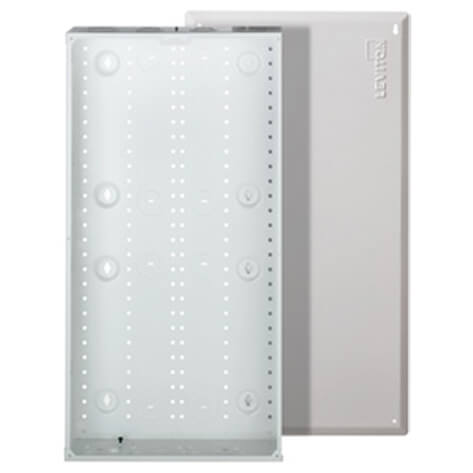

Series 280 28" Structured Media Center Enclosure & Flush-mount Cover - White

The Leviton Series 280 Structured Media Center Enclosure and Flush-mount Cover, 28-Inch (47605-28W) enclosures are used to terminate all of the home-run wires from wall outlets and provide a distribution point for voice, data and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits.

Features:

• Positive stops on housing side walls prevent enclosure from falling through studs during installation
• One piece white steel unit hold full and half width expansion modules
• Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment
• Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts
• Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing
• Cut-out in base of enclosure for mounting single gang J-Box kit
• Six 3 Inch square self-healing foam grommets accommodate cable bundles

Specifications:

• Series: Series 280
• Item: Enclosure and Flush Mount Cover
• Height: 28 Inch
• Width: 14.38 Inch
• Depth: 3 Inch
• Gauge of Steel: 18 Gauge
• Paint Finish: Powder-Coated
• Max. Module Capacity: 8
• Notes: Module count dependent of the type used.
• Color: White
• Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
• Warranty: 2 Year Limited Plus
