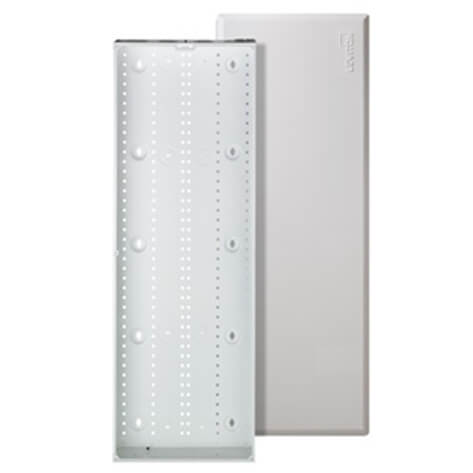

Series 420 42" Structured Media Enclosure w/ Flush Cover - White

The Leviton Structured Media Enclosure, Series 420 (47605-42N) is used to terminate all of the home-run wires from wall outlets and provides a distribution point for voice, data, and video wiring. It is suitable for a residence or multiple-dwelling units. The enclosure can accommodate up to 12 modules. These enclosures are ideal for new installations or retrofits.

Features:

• Positive stops on housing side walls prevent enclosure from falling through studs during installation.
• One piece white steel unit hold full and half width expansion modules.
• Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
• Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
• Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
• Cut-out in base of enclosure for mounting single gang J-Box kit.
• Six 3 Inch square self-healing foam grommets accommodate cable bundles.

Specifications:

• Height: 42 Inch
• Width: 14.38 Inch
• Depth: 3.6 Inch
• Enclosure Material: Steel
• Paint Finish: Powder-Coated
• Color: White
