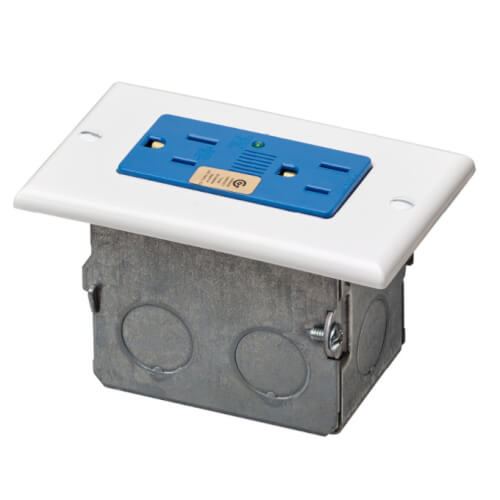

Junction Box Surge Protective Kit

Junction Box Surge Protective Kit

Leviton offers reliable surge protective AC Power Modules and J-Box kits. Both the AC Power Module and the J-Box kits work with the Series 140, 280 and 420 Structured Media Centers. Choose either surge protective for optimum protection or non-surge protective. The surge protected options provide EMI/RFI filtering that meets UL 1449 standards. The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit features one 15-Amp duplex receptacle.

Product Features

• Surge-protected units provide greater protection for line-voltage modules, including multi-stage defense L-N,L-G,N-G.
• Provides 2 Outlets of protected power.
• Safety Clips protect outlets against dust, dirt and debris.
• Cable knockout on bottom for power service connection.
• Saves valuable real estate by mounting on outside of Structured Media Enclosures.
• Features EMI/RFI filtering and meets UL1449 standards.

Product Specifications

• Input Voltage: 120 Volt AC
• Output Power: 15 Amp
• Output Voltage: 120 Volt
• Type: AC Power Module
• Enclosure Material: Powder-Coated Steel
• Quantity of Outlets: 2
• Diagnostics: Indicator Light & Audible Alarm
• Joules at 10/1000 micro-sec: 720
• MCOV: 150V rms
• Max Surge Current L-N: 24kA
• Noise Rejection: -30dB at 500kHz-30MHz
• UL1449 Impulse 6kV/500A L-G: 400V
• Feature: Surge
• NEMA: 5-15R
• Series Compatibility: 140, 280, 420 Series Compatible
• Standards and Certifications: UL
• Warranty: 2-Year Limited
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-6
• NOM: 057
• UL1449 Std. 2nd Edition: File E146315
• UL498HG: File E13399
