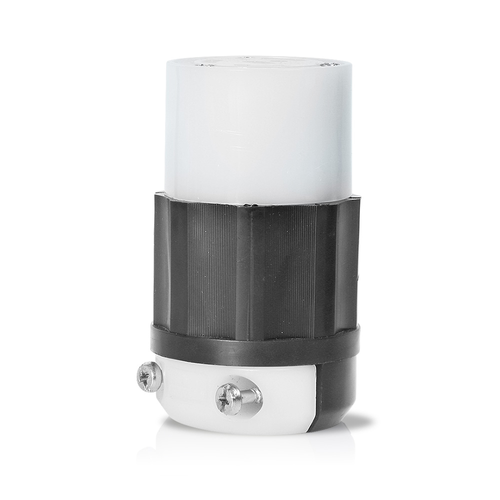

15A, 277V NEMA L7-15R, 2P, 3W, Locking Connector, Grounding (Black/White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.72 each
Out of Stock
MANUALS (1)
This item replaces: 4779-CJ
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
Nylon
Black, White
15 Amps
Description
–
Features
Specifications
- L7-15R
- Unique cord clamp accepts wide range of cord sizes
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
Specifications
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Pole: 2
- Color: Black-White
- CSA C22.2 No. 42: File LR-406
- Grounding: Grounding
- Voltage: 277 VAC
- Brand: Black and White
- Warranty: Limited Lifetime Warranty Warranty
- NEMA: WD-6
- Operating Temperature: -40 °C to 60 °C
- ANSI: C-73
- Flammability: Rated HB or better UL94
- Horsepower Rating: 2 HP
- Cord-Clamp: Nylon
- Body Material: Impact Modified Nylon
- Wire Gauge: 18-10 AWG
- Terminal Screws: Brass
- Assembly Screws: Steel, Zinc Plated
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Back Cover: Thermoplastic
- Current Interrupting: Certified for current interrupting at full rated current
- RoHS Compliant: TRUE
- Terminal Accom.: 18-10 AWG
- UL Fed Spec WC-596: File E13393
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Wire Module: Nylon
- NOM Certified: 57
- Blades/Contacts: Solid Brass
- Country of Origin: Mexico
- Environment: Dry
- Cord Range: 0.230 to 0.685
- Dielectric Voltage: Withstands 2000V per UL498
- Torque Range: 10-14 in-lbs
- Wire: 3
- Clamp Insert: Nylon
- Amperage: 15 A
Specs
–
| Warranty: | Lifetime Limited |
|---|---|
| Ground: | Grounding |
| Series: | Black & White |
| Material: | Nylon |
| Color: | Black White |
| Poles: | 2 |
| Amperage: | 15 |
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
