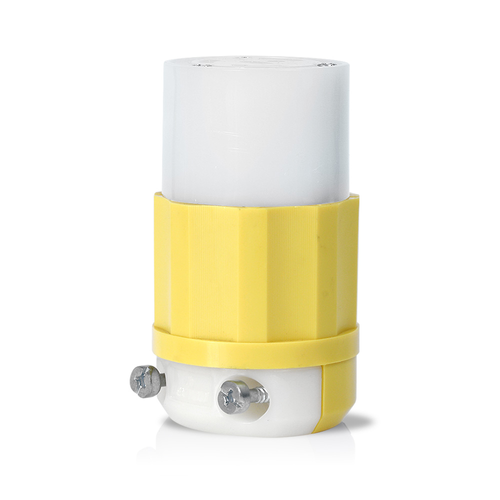

Locking Connector, 15A, 277V Industrial Grade (Yellow & White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$20.10 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
Yellow, White
Lifetime Limited Warranty
Nylon
Description
–
Features
Specifications
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- L7-15R
- One piece contacts reduce friction and overheating
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Unique cord clamp accepts wide range of cord sizes
Specifications
- Dielectric Voltage: Withstands 2000V per UL498
- Wire: 3
- Voltage: 277 VAC
- Current Interrupting: Certified for current interrupting at full rated current
- Cord Range: .240 - .700
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- NOM Certified: 57
- Back Cover: Thermoplastic
- CSA C22.2 No. 42: File LR-406
- Grounding: Grounding
- Terminal Screws: Brass
- Pole: 2
- Assembly Screws: Steel, Zinc Plated
- Cord-Clamp: Nylon
- Operating Temperature: -40 °C to 60 °C
- Brand: Black and White
- Blades/Contacts: Solid Brass
- Flammability: Rated HB or better UL94
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Warranty: Limited Lifetime Warranty Warranty
- UL Fed Spec WC-596: File E13393
- Body Material: Impact Modified Nylon
- Wire Module: Nylon
- Wire Gauge: 18-10 AWG
- Country of Origin: Mexico
- Clamp Insert: Nylon
- Terminal Accom.: 18-10 AWG
- Amperage: 15 A
- Horsepower Rating: 2 HP
- RoHS Compliant: TRUE
- Color: Yellow-White
- Product ID: Ratings and NEMA I.D. permanently marked on device
- NEMA: WD-6
- Environment: Dry
- ANSI: C-73
Specs
–
| Amperage: | 15 |
|---|---|
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
| Color: | Yellow White |
| Ground: | Grounding |
| Poles: | 2 |
| Series: | Black & White |
| Warranty: | Lifetime Limited |
| Material: | Nylon |
