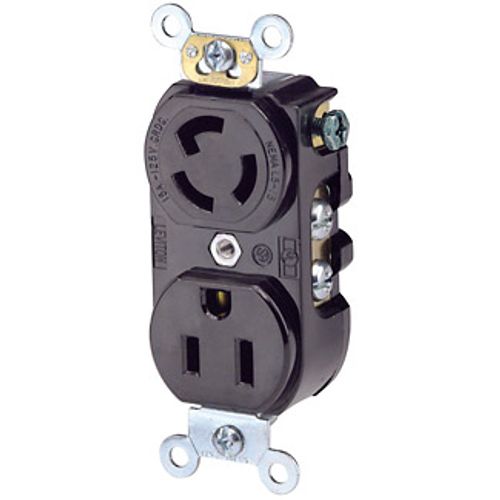

Duplex Receptacle Outlet, Straight Blade and Locking, Smooth Face, 15A, 125V Common Feed, 2-Pole, 3-Wire, Self-Grounding (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.51 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- L5-15R/5-15R
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
- Current Limiting: Full Rated Current
- RoHS Compliant: TRUE
- Grounding: Grounding
- Pole: 2
- UL Fed Spec WC-596: File E13399
- Body Material: Nylon
- At Rated Voltage: 1/2 HP
- Dielectric Voltage: Withstands 2000V per UL498
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Device Type: Locking Receptacle
- NOM: 57
- Screw Terminal Torque: 14-18 in-lbs
- Wire: 3
- Terminal Screws: Brass 10-32
- Line Contacts: Brass .031 Thick
- Flammability: Rated V-2 per UL 94
- Terminal Accom.: 18-10 AWG
- Country of Origin: Mexico
- Face Material: Nylon
- Yoke: Zinc-Plated Steel
- Termination: Back & Side
- ANSI: C-73
- Amperage: 15 A
- Operating Temperature: -40 °C to 60 °C
- Environment: Dry
- Strap Material: Steel
- Color: Black
- NEMA: WD-6
- UL498: File E13399
- Voltage: 125 VAC
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Warranty: Limited Lifetime Warranty Warranty
- Grounding Screw: Brass 8-32
- CSA C22.2 No. 42: File 152105
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Specs
–
| Country of Origin: | Mexico |
|---|
