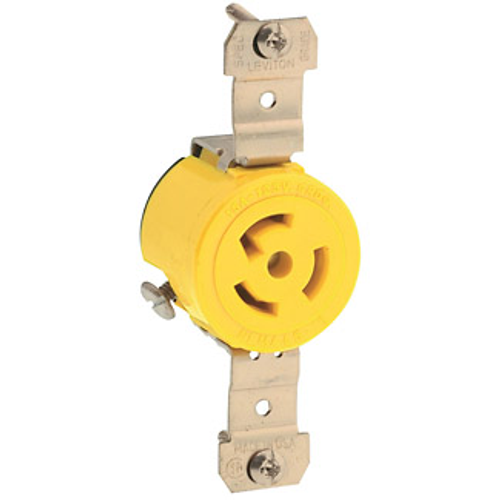

Main product image of 15A, 125V NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom

15A, 125V NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)

Brand:
Leviton
SKU:
47CM-10
Rating:
(0)
Q&A:
(0)
15A, 125V NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom
$16.78 each
Out of Stock
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
10 years Warranty
Product Highlight: Amperage
15 Amps
Product Highlight: Material
Nylon
Product Highlight: Color
Yellow

Description

–
Features
  • L5-15R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • Color: Yellow
  • Environment: Corrosive
  • At Rated Voltage: 1/2 HP
  • Amperage: 15 A
  • Pole: 2
  • Body Material: Nylon
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Warranty: 10-Year Limited
  • UL498: File E13399
  • Wire: 3
  • Country of Origin: Mexico
  • Dielectric Voltage: Withstands 2000V per UL498
  • Strap Material: Nickel-Plated Brass
  • Terminal Accom.: 18-10 AWG
  • Base Material: Nylon
  • Face Material: Nylon
  • Grounding Screw: Nickel-Plated Brass 8-32
  • RoHS Compliant: FALSE
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • Current Limiting: Full Rated Current
  • Grounding: Grounding
  • Line Contacts: Nickel-Plated Brass .040 Thick
  • Voltage: 125 VAC
  • Flammability: Rated V-0 per UL 94
  • NEMA: WD-6
  • Yoke: Nickel-Plated Brass .050 Thick
  • Termination: Side
  • NOM: 57
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • CSA C22.2 No. 42: File LR-406
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Screw Terminal Torque: 14-18 in-lbs
  • Operating Temperature: -40 °C to 60 °C

Specs

–
NEMA Rating:

WD-6

Country of Origin:

Mexico

Ground:

Grounding

Warranty:

10 years

Amperage:

15

Terminations:

Side Wire

Material:

Nylon

Color:

Yellow

Poles:

2
