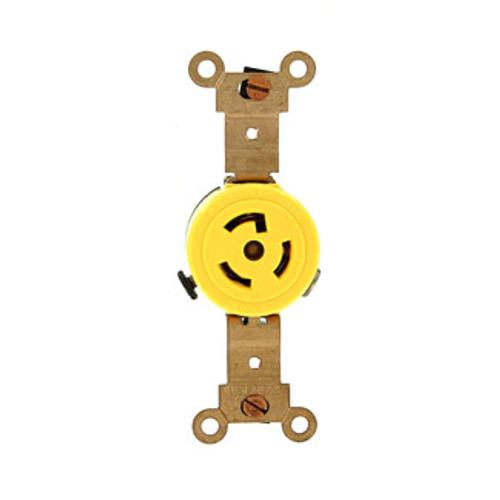

Main product image of 15A, 277V NEMA L7-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom

15A, 277V NEMA L7-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)

Brand:
Leviton
SKU:
47CM-60
Rating:
(0)
Q&A:
(0)
15A, 277V NEMA L7-15R, 2P, 3W, Single Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom
$18.22 each
Out of Stock
Out of Stock
Get it Tue, Jul 28 - Tue, Aug 4
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
15 Amps
Product Highlight: Color
Yellow
Product Highlight: Warranty
10 years Warranty
Product Highlight: Material
Nylon

Description

–
Features
  • L7-15R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • Line Contacts: Nickel-Plated Brass .040 Thick
  • Pole: 2
  • Country of Origin: Mexico
  • Yoke: Nickel-Plated Brass .050 Thick
  • UL498: File E13399
  • Body Material: Nylon
  • Voltage: 277 VAC
  • Grounding: Grounding
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Face Material: Nylon
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Wire: 3
  • NOM: 57
  • At Rated Voltage: 2 HP
  • Termination: Side
  • Environment: Corrosive
  • Terminal Accom.: 18-10 AWG
  • UL Fed Spec WC-596: File E13399
  • Base Material: Nylon
  • Strap Material: Nickel-Plated Brass
  • NEMA: WD-6
  • RoHS Compliant: FALSE
  • ANSI: C-73
  • Flammability: Rated V-0 per UL 94
  • Dielectric Voltage: Withstands 2000V per UL498
  • Screw Terminal Torque: 14-18 in-lbs
  • Current Limiting: Full Rated Current
  • Color: Yellow
  • Grounding Screw: Nickel-Plated Brass 8-32
  • Warranty: 10-Year Limited
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Operating Temperature: -40 °C to 60 °C
  • CSA C22.2 No. 42: File LR-406
  • Amperage: 15 A

Specs

–
Poles:

2

Ground:

Grounding

Amperage:

15

Color:

Yellow

Warranty:

10 years

Country of Origin:

Mexico

Material:

Nylon

NEMA Rating:

WD-6

Terminations:

Side Wire
