$40.96 each
In Stock
Get 3 Tue, Jul 14
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Residential, Commercial
Gray
15 Amps
2 years Warranty
Description
–
Features
Specifications

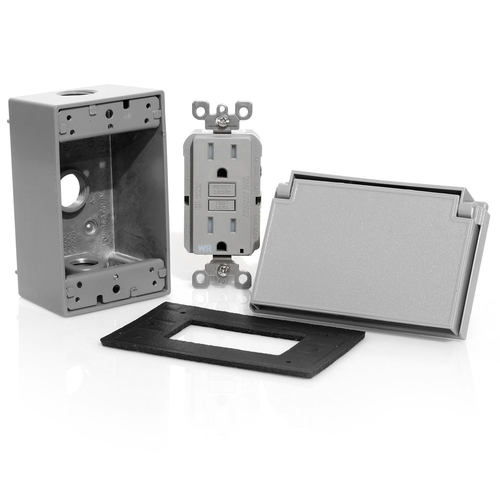

- Ideal for outdoor power, landscape, accent and holiday lighting
- Ruggedly constructed to seal out moisture, dust, debris, and insects, while providing easy access to receptacles and switches
- 5-15R
- Complies with the National Electric Code (2017) Section 406.9 for weatherproof enclosures in damp and wet locations.
Specifications
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Grounding: Green Ground Screw
- Standards and Certifications: UL/CSA
- ANSI: C-73
- NOM: Yes
- Grade: Residential/Commercial Specification Grade
- Wire: 3
- UL498: Yes
- Body Material: Polycarbonate
- Fed Spec WC-596: Yes
- Gang: 1
- Brand: SmartlockPro
- Feature: Self-Test Receptacle|Self Closing Lid
- Color: Gray
- Product ID: Ratings are permanently marked on device
- Pole: 2
- Grounding Screw: Stainless Steel
- Line Contacts: Brass Double-Wipe .031 Thick
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Trip Level: Class A, 5mA plus or minus 1mA
- Voltage: 125 VAC
- Face Material: Polypropylene
- Country of Origin: China
- RoHS Compliant: FALSE
- Warranty: 2-Year Limited
- Orientation: Horizontal
- Terminal Screws: Stainless Steel
- CSA C22.2 No. 42: Yes
- Short Circuit Current Rating: 10KA
- Type: Standard Duplex|Weather Resistant
- Amperage: 15 A
- UL 943: File E48380
- Mount: Device
- Termination: Back & Side
- Operating Temperature: -35C to +66C
- CSA-C22.2 No. 144.1-06: File LR-57811
- Tamper Resistant: Yes
- Material: Thermoplastic
- NEMA: 5-15R
- MIL-SPEC: A-A-55459-SB
- Wire: 3
Specs
–
| Grade: | Residential Commercial |
|---|---|
| Color: | Gray |
| Terminations: | Back Wire Side Wire |
| Series: | SmartlockPro |
| Ground: | Green Ground Screw |
| Amperage: | 15 |
| NEMA Rating: | 5-15R |
| Warranty: | 2 years |
| Poles: | 2 |
