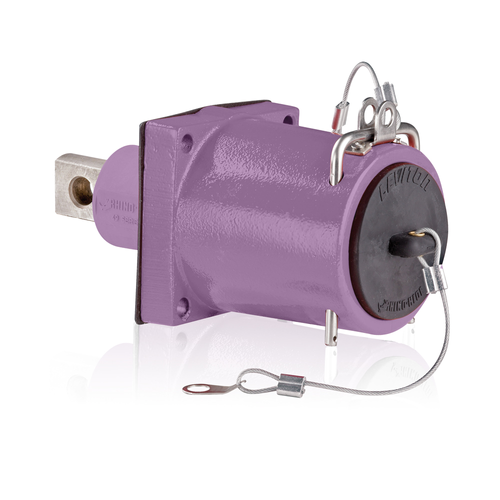

Main product image of Rhino-Hide Single Pole Female Receptacle Single Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Purple)
Magnifying glass
Hover image to zoom

Rhino-Hide Single Pole Female Receptacle Single Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Purple)

Brand:
Leviton
SKU:
49FR1-CP
Rating:
(0)
Q&A:
(0)
Rhino-Hide Single Pole Female Receptacle Single Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Purple)
Magnifying glass
Hover image to zoom
$1,164.17 each
Out of Stock
Out of Stock
Get it Fri, Jul 24 - Fri, Jul 31

MANUALS (1)

Product Overview
Product Overview
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Connection Type
Female Connection
Product Highlight: Voltage
1000v
Product Highlight: Amperage
1135 Amps
Product Highlight: Color
Purple

Description

–
Features
  • Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
  • TPV cap prevents contamination when receptacle is not in use
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.

Specifications
  • Bus Bar Contact: Silver-Plated High Conductivity Alloy
  • UL: Recognized Component
  • Country of Origin: Please Contact Customer Service
  • Connector Termination: Bus Bar-Single Hole
  • Padlock Bracket: Stainless Steel
  • RoHS Compliant: FALSE
  • Housing Gasket: Rubber
  • Bus Bar Insulator: Santoprene TPV
  • Max. Amperage: 1135 Amp
  • Color: Purple
  • Receptacle Housing: Powder-Coated Cast Aluminum
  • Gender: Female
  • NEMA Rating: Type 3R
  • Clevis Pin: Stainless Steel
  • Dust Cap: Santoprene TPV
  • Max. Voltage: 1000 Volt

Specs

–
Connection Type:

Female

Voltage:

1000v

Amperage:

1135

Color:

Purple
