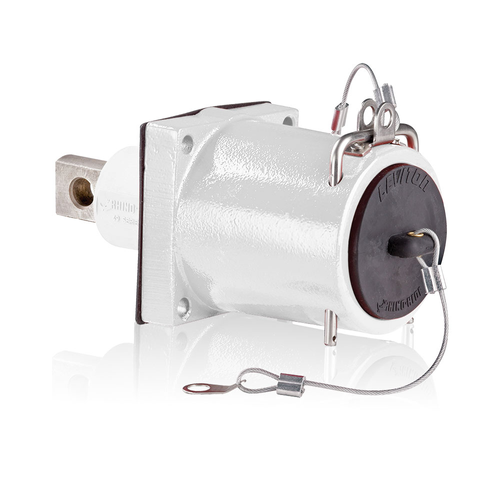

Rhino-Hide Single Pole Female Receptacle Single Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,164.17 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
Female Connection
1000v
1135 Amps
Description
–
Features
Specifications
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
Specifications
- UL: Recognized Component
- Housing Gasket: Rubber
- Country of Origin: Please Contact Customer Service
- Clevis Pin: Stainless Steel
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Gender: Female
- Receptacle Housing: Powder-Coated Cast Aluminum
- Max. Voltage: 1000 Volt
- NEMA Rating: Type 3R
- Max. Amperage: 1135 Amp
- Dust Cap: Santoprene TPV
- Connector Termination: Bus Bar-Single Hole
- Padlock Bracket: Stainless Steel
- Color: White
- Bus Bar Insulator: Santoprene TPV
- RoHS Compliant: FALSE
Specs
–
| Color: | White |
|---|---|
| Connection Type: | Female |
| Voltage: | 1000v |
| Amperage: | 1135 |
