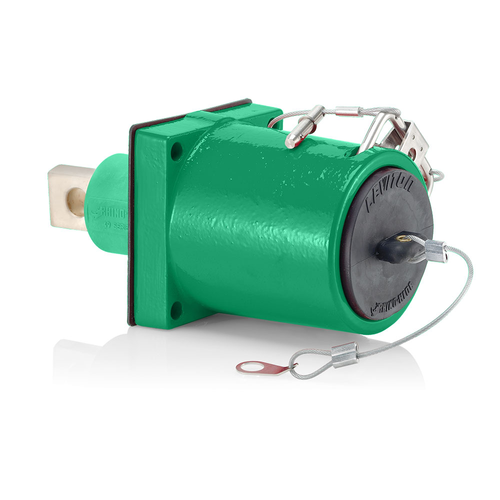

Main product image of Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Green)
Magnifying glass
Hover image to zoom

Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Green)

Brand:
Leviton
SKU:
49FR1-XG
Rating:
(0)
Q&A:
(0)
Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Green)
Magnifying glass
Hover image to zoom
$1,234.13 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28

MANUALS (1)

Product Overview
Product Overview
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
1135 Amps
Product Highlight: Color
Green
Product Highlight: Connection Type
Female Connection
Product Highlight: Voltage
1000v

Description

–
Features
  • TPV cap prevents contamination when receptacle is not in use
  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels

Specifications
  • Gender: Female
  • Padlock Bracket: Stainless Steel
  • Clevis Pin: Stainless Steel
  • RoHS Compliant: FALSE
  • Housing Gasket: Rubber
  • Receptacle Housing: Powder-Coated Cast Aluminum
  • Bus Bar Contact: Silver-Plated High Conductivity Alloy
  • Bus Bar Insulator: Santoprene TPV
  • Connector Termination: Bus Bar-Single Hole
  • Country of Origin: Please Contact Customer Service
  • Color: Green
  • UL: Recognized Component
  • Max. Amperage: 1135 Amp
  • Dust Cap: Santoprene TPV
  • Max. Voltage: 1000 Volt
  • NEMA Rating: Type 3R

Specs

–
Amperage:

1135

Color:

Green

Connection Type:

Female

Voltage:

1000v
