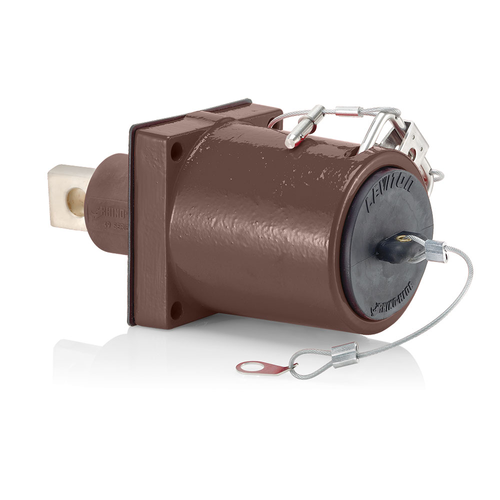

Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Brown)

Brand:
Leviton
SKU:
49FR1-XH
Rating:
(0)
Q&A:
(0)
Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Brown)
Magnifying glass
Hover image to zoom
$1,234.13 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28

MANUALS (1)

Product Overview
Product Overview
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Brown
Product Highlight: Voltage
1000v
Product Highlight: Amperage
1135 Amps
Product Highlight: Connection Type
Female Connection

Description

–
Features
  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
  • Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • TPV cap prevents contamination when receptacle is not in use

Specifications
  • Receptacle Housing: Powder-Coated Cast Aluminum
  • NEMA Rating: Type 3R
  • Bus Bar Contact: Silver-Plated High Conductivity Alloy
  • Color: Brown
  • Dust Cap: Santoprene TPV
  • UL: Listed
  • RoHS Compliant: TRUE
  • Bus Bar Insulator: Santoprene TPV
  • Max. Voltage: 1000 Volt
  • Max. Amperage: 1135 Amp
  • Padlock Bracket: Stainless Steel
  • Gender: Female
  • Connector Termination: Bus Bar-Single Hole
  • Housing Gasket: Rubber
  • Country of Origin: Please Contact Customer Service
  • Clevis Pin: Stainless Steel

Specs

–
Color:

Brown

Voltage:

1000v

Amperage:

1135

Connection Type:

Female
