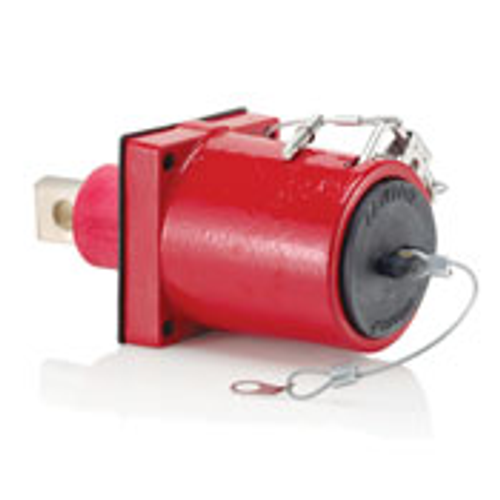

Rhino-Hide 1 Pole Fem 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Red)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,234.13 each
Out of Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Female Connection
Red
1000v
1135 Amps
Description
–
Features
Specifications
- Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels).
Specifications
- Connector Termination: Bus Bar-Single Hole
- Max. Amperage: 1135 Amp
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Clevis Pin: Stainless Steel
- Country of Origin: Please Contact Customer Service
- RoHS Compliant: FALSE
- Max. Voltage: 1000 Volt
- Bus Bar Insulator: Santoprene TPV
- Padlock Bracket: Stainless Steel
- Gender: Female
- UL: Recognized Component
- Receptacle Housing: Powder-Coated Cast Aluminum
- Dust Cap: Santoprene TPV
- Color: Red
- Housing Gasket: Rubber
- NEMA Rating: Type 3R
Specs
–
| Connection Type: | Female |
|---|---|
| Color: | Red |
| Voltage: | 1000v |
| Amperage: | 1135 |
