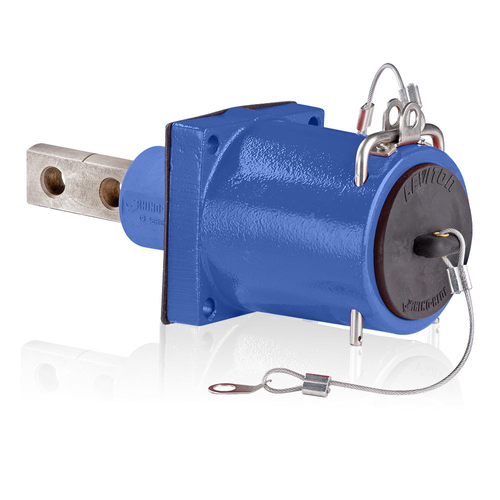

Rhino-Hide Single Pole Female Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,222.37 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1000v
1135 Amps
Blue
Female Connection
Description
–
Features
Specifications
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Specifications
- UL: Recognized Component
- Max. Voltage: 1000 Volt
- Color: Blue
- Connector Termination: Bus Bar-Double Hole
- NEMA Rating: Type 3R
- Dust Cap: Santoprene TPV
- Clevis Pin: Stainless Steel
- Padlock Bracket: Stainless Steel
- Bus Bar Insulator: Santoprene TPV
- Max. Amperage: 1135 Amp
- RoHS Compliant: FALSE
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Receptacle Housing: Powder-Coated Cast Aluminum
- Housing Gasket: Rubber
- Country of Origin: Please Contact Customer Service
- Gender: Female
Specs
–
| Voltage: | 1000v |
|---|---|
| Amperage: | 1135 |
| Color: | Blue |
| Connection Type: | Female |
