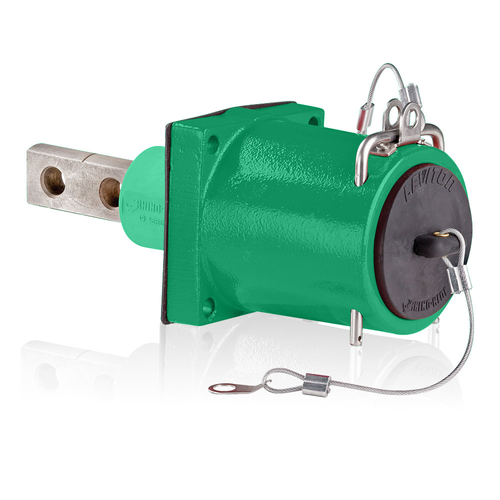

Rhino-Hide Single Pole Female Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Green)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,164.17 each
Out of Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Female Connection
Green
1000v
1135 Amps
Description
–
Features
Specifications
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
- TPV cap prevents contamination when receptacle is not in use
Specifications
- Dust Cap: Santoprene TPV
- Bus Bar Insulator: Santoprene TPV
- Housing Gasket: Rubber
- Connector Termination: Bus Bar-Double Hole
- Max. Voltage: 1000 Volt
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- NEMA Rating: Type 3R
- Clevis Pin: Stainless Steel
- UL: Recognized Component
- Color: Green
- RoHS Compliant: FALSE
- Padlock Bracket: Stainless Steel
- Gender: Female
- Max. Amperage: 1135 Amp
- Receptacle Housing: Powder-Coated Cast Aluminum
- Country of Origin: Please Contact Customer Service
Specs
–
| Connection Type: | Female |
|---|---|
| Color: | Green |
| Voltage: | 1000v |
| Amperage: | 1135 |
