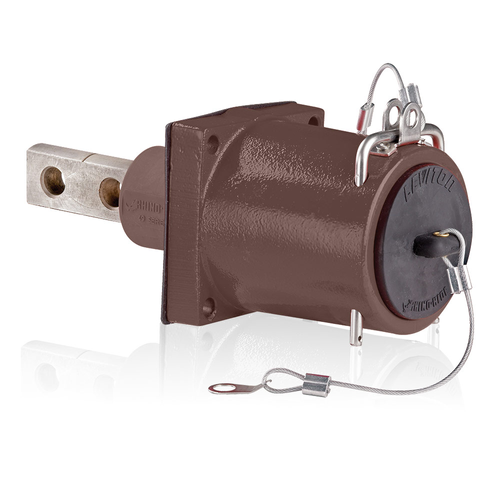

Rhino-Hide Single Pole Female Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable, 1000V 1135A Max (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,222.37 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brown
1000v
Female Connection
1135 Amps
Description
–
Features
Specifications
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
Specifications
- Gender: Female
- NEMA Rating: Type 3R
- Max. Voltage: 1000 Volt
- RoHS Compliant: FALSE
- Max. Amperage: 1135 Amp
- Dust Cap: Santoprene TPV
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Padlock Bracket: Stainless Steel
- Country of Origin: Please Contact Customer Service
- Housing Gasket: Rubber
- Color: Brown
- Clevis Pin: Stainless Steel
- UL: Recognized Component
- Receptacle Housing: Powder-Coated Cast Aluminum
- Connector Termination: Bus Bar-Double Hole
- Bus Bar Insulator: Santoprene TPV
Specs
–
| Color: | Brown |
|---|---|
| Voltage: | 1000v |
| Connection Type: | Female |
| Amperage: | 1135 |
