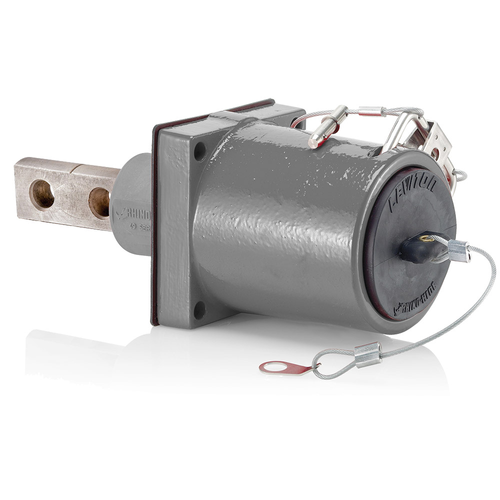

Rhino-Hide Double Hole Fem 45 Deg Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,234.13 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
This item replaces: 49FR2-CGY
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1000v
1135 Amps
Female Connection
Gray
Description
–
Features
Specifications
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Specifications
- Country of Origin: Please Contact Customer Service
- Connector Termination: Bus Bar-Double Hole
- UL: Recognized Component
- Housing Gasket: Rubber
- RoHS Compliant: FALSE
- Receptacle Housing: Powder-Coated Cast Aluminum
- Dust Cap: Santoprene TPV
- Padlock Bracket: Stainless Steel
- Max. Amperage: 1135 Amp
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Max. Voltage: 1000 Volt
- Gender: Female
- Color: Gray
- NEMA Rating: Type 3R
- Clevis Pin: Stainless Steel
- Bus Bar Insulator: Santoprene TPV
Specs
–
| Voltage: | 1000v |
|---|---|
| Amperage: | 1135 |
| Connection Type: | Female |
| Color: | Gray |
