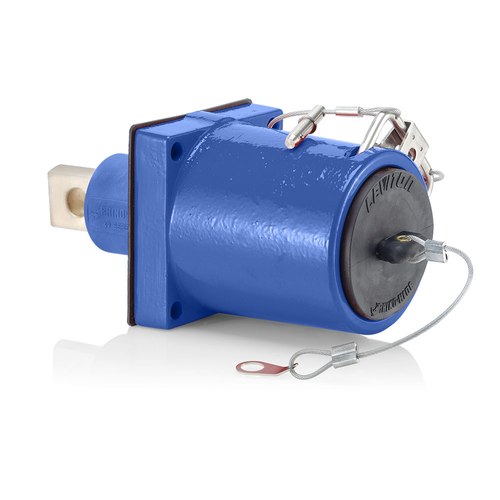

Rhino-Hide 1 Pole Male 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,398.65 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Male Connection
1135 Amps
Blue
1000v
Description
–
Features
Specifications
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
- TPV cap prevents contamination when receptacle is not in use
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Specifications
- UL: Recognized Component
- Receptacle Housing: Powder-Coated Cast Aluminum
- Max. Voltage: 1000 Volt
- RoHS Compliant: FALSE
- Dust Cap: Santoprene TPV
- NEMA Rating: Type 3R
- Country of Origin: Please Contact Customer Service
- Padlock Bracket: Stainless Steel
- Connector Termination: Bus Bar-Single Hole
- Housing Gasket: Rubber
- Color: Blue
- Max. Amperage: 1135 Amp
- Bus Bar Insulator: Santoprene TPV
- Gender: Male
- Clevis Pin: Stainless Steel
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
Specs
–
| Connection Type: | Male |
|---|---|
| Amperage: | 1135 |
| Color: | Blue |
| Voltage: | 1000v |
