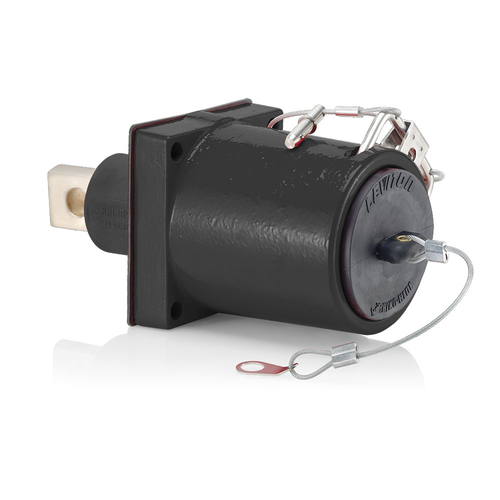

Rhino-Hide 1 Pole Male 45 Deg Receptacle 1 Hole Bus Bar, 313MCM-777MCM Cable (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,398.65 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1000v
Black
Male Connection
1135 Amps
Description
–
Features
Specifications
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
- TPV cap prevents contamination when receptacle is not in use
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
Specifications
- Max. Voltage: 1000 Volt
- Clevis Pin: Stainless Steel
- Color: Black
- Housing Gasket: Rubber
- Max. Amperage: 1135 Amp
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Country of Origin: Please Contact Customer Service
- Gender: Male
- UL: Recognized Component
- Padlock Bracket: Stainless Steel
- RoHS Compliant: FALSE
- Bus Bar Insulator: Santoprene TPV
- Receptacle Housing: Powder-Coated Cast Aluminum
- Dust Cap: Santoprene TPV
- Connector Termination: Bus Bar-Single Hole
- NEMA Rating: Type 3R
Specs
–
| Voltage: | 1000v |
|---|---|
| Color: | Black |
| Connection Type: | Male |
| Amperage: | 1135 |
