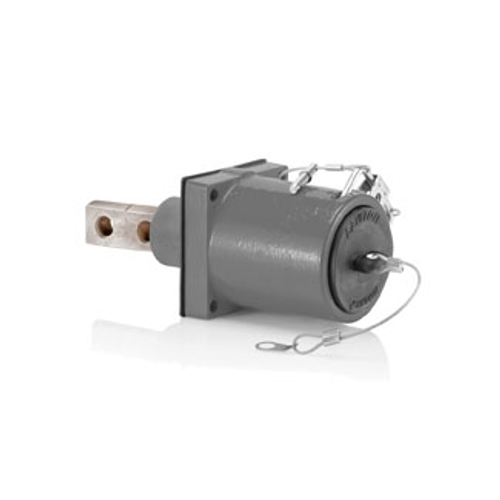

Rhino-Hide Double Pole Male 45 Deg Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,375.14 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Male Connection
1135 Amps
1000v
Gray
Description
–
Features
Specifications
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- TPV cap prevents contamination when receptacle is not in use
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Specifications
- Bus Bar Insulator: Santoprene TPV
- Max. Amperage: 1135 Amp
- Gender: Male
- Receptacle Housing: Powder-Coated Cast Aluminum
- Dust Cap: Santoprene TPV
- Max. Voltage: 1000 Volt
- Color: Gray
- Housing Gasket: Rubber
- Bus Bar Contact: Silver-Plated High Conductivity Alloy
- Connector Termination: Bus Bar-Double Hole
- UL: Recognized Component
- NEMA Rating: Type 3R
- Country of Origin: Please Contact Customer Service
- Clevis Pin: Stainless Steel
- Padlock Bracket: Stainless Steel
- RoHS Compliant: TRUE
Specs
–
| Connection Type: | Male |
|---|---|
| Amperage: | 1135 |
| Voltage: | 1000v |
| Color: | Gray |
