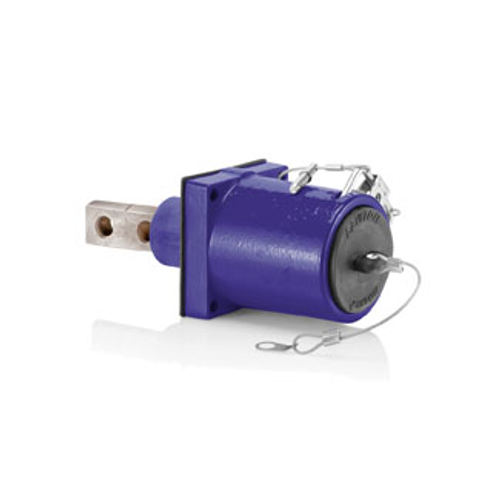

Main product image of Rhino-Hide Double Pole Male 45 Deg Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable (Purple)
Magnifying glass
Hover image to zoom

Rhino-Hide Double Pole Male 45 Deg Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable (Purple)

Brand:
Leviton
SKU:
49MR2-XP
Rating:
(0)
Q&A:
(0)
Rhino-Hide Double Pole Male 45 Deg Receptacle Double Hole Bus Bar, 313MCM-777MCM Cable (Purple)
Magnifying glass
Hover image to zoom
$1,375.14 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28

MANUALS (1)

Product Overview
Product Overview
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Purple
Product Highlight: Amperage
1135 Amps
Product Highlight: Voltage
1000v
Product Highlight: Connection Type
Male Connection

Description

–
Features
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
  • TPV cap prevents contamination when receptacle is not in use
  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.

Specifications
  • Receptacle Housing: Powder-Coated Cast Aluminum
  • Gender: Male
  • Country of Origin: Please Contact Customer Service
  • Clevis Pin: Stainless Steel
  • Dust Cap: Santoprene TPV
  • RoHS Compliant: TRUE
  • UL: Recognized Component
  • Max. Amperage: 1135 Amp
  • Housing Gasket: Rubber
  • Connector Termination: Bus Bar-Double Hole
  • Color: Purple
  • Bus Bar Insulator: Santoprene TPV
  • Max. Voltage: 1000 Volt
  • Padlock Bracket: Stainless Steel
  • NEMA Rating: Type 3R
  • Bus Bar Contact: Silver-Plated High Conductivity Alloy

Specs

–
Color:

Purple

Amperage:

1135

Voltage:

1000v

Connection Type:

Male
