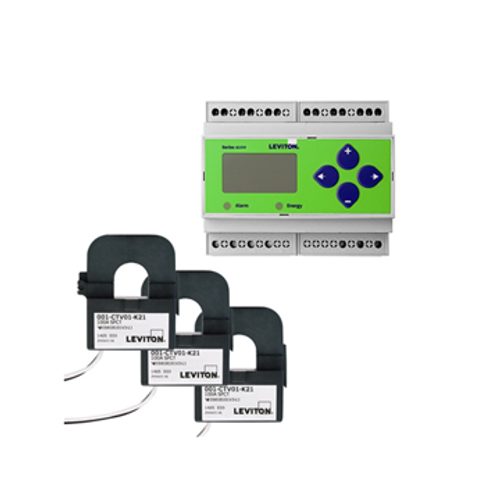

Submeter, Din Rail Mount, Universal Vage, 3 Phase 3 Wire/4 Wire, 400a, (3) Split Core Current Transformers, Electric Meter Kit
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,171.00 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
400 Amps
Description
–
Features
Specifications
- Rogowski CT Options (20-5,000A)
- Load profiling and benchmarking
- 50/60 Hz
- Bidirectional monitoring
- Energy conservation and cost reduction
- Energy monitoring for AMR/BAS/BMS/EMS systems
- The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors. Do you have a question about submetering? Contact us to learn more.
- Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Renewable energy applications such as solar panels and wind
- Measurement and verification
- Tenant cost allocation
- Industrial monitoring
- Green building initiatives and government mandates
- DIN rail mount or NEMA 4X enclosure
- Industrial temperature range: -22-158°F
Specifications
- Product Line: Series 4100 Kit
- Communication: ModBus/RTU, BACnet MS/TP
- Amperage: 400 A
- CTs Included: 3 Split Core CTs
- Country of Origin: United States
- Voltage: Universal Bi-Directional 3-phase 3W/4W
- Meter Configuration: Single Meter
- Enclosure: No Enclosure - DIN Rail Mount
- RoHS Compliant: FALSE
- Product Type: Submeter and Current Transformer(s)
Specs
–
| Amperage: | 400 |
|---|
