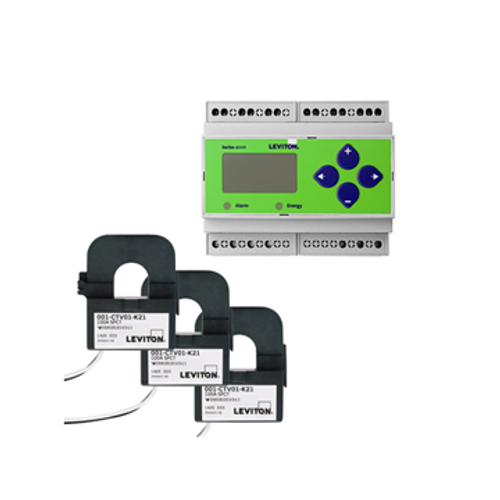

Submeter, Din Rail Mount, Universal Vage, 3 Phase 3 Wire/4 Wire, 800a, (3) Split Core Current Transformers, Electric Meter Kit
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,322.97 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
800 Amps
Description
–
Features
Specifications
- The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors. Do you have a question about submetering? Contact us to learn more.
- DIN rail mount or NEMA 4X enclosure
- Load profiling and benchmarking
- Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Green building initiatives and government mandates
- Rogowski CT Options (20-5,000A)
- Energy conservation and cost reduction
- Bidirectional monitoring
- Industrial temperature range: -22-158°F
- Renewable energy applications such as solar panels and wind
- Measurement and verification
- Tenant cost allocation
- 50/60 Hz
- Industrial monitoring
- Energy monitoring for AMR/BAS/BMS/EMS systems
Specifications
- Meter Configuration: Single Meter
- RoHS Compliant: TRUE
- CTs Included: 3 Split Core CTs
- Voltage: Universal Bi-Directional 3-phase 3W/4W
- Country of Origin: United States
- Amperage: 800 A
- Product Type: Submeter and Current Transformer(s)
- Enclosure: No Enclosure - DIN Rail Mount
- Product Line: Series 4100 Kit
- Communication: ModBus/RTU, BACnet MS/TP
Specs
–
| Amperage: | 800 |
|---|
