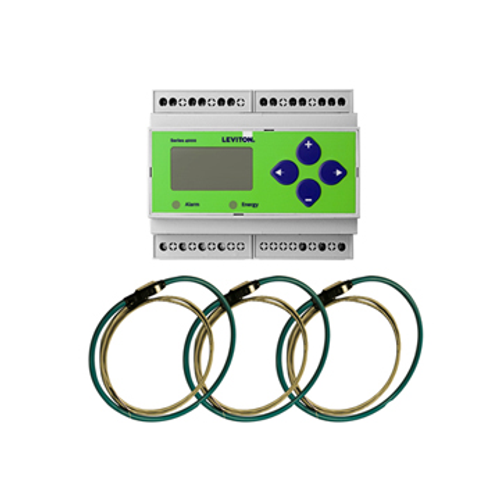

Din-Rail, Series 4100 Submeter, Bi-Directional 3PH 3W/4W Modbus 18" Rogowski (CT)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,060.44 each
Out of Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5000 Amps
Description
–
Features
Specifications
- Green building initiatives and government mandates
- Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Renewable energy applications such as solar panels and wind
- 50/60 Hz
- Industrial monitoring
- DIN rail mount or NEMA 4X enclosure
- Energy conservation and cost reduction
- Rogowski CT Options (20-5,000A)
- Measurement and verification
- Industrial temperature range: -22-158°F
- The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors. Do you have a question about submetering? Contact us to learn more.
- Energy monitoring for AMR/BAS/BMS/EMS systems
- Tenant cost allocation
- Bidirectional monitoring
- Load profiling and benchmarking
Specifications
- Enclosure: No Enclosure - DIN Rail Mount
- Product Type: Submeter and Current Transformer(s)
- Communication: ModBus/RTU, BACnet MS/TP
- Amperage: 5000 A
- RoHS Compliant: FALSE
- Country of Origin: United States
- Voltage: Universal Bi-Directional 3-phase 3W/4W
- Product Line: Series 4100 Kit
- Meter Configuration: Single Meter
- CTs Included: 3 Rogowski Coil CTs
Specs
–
| Amperage: | 5000 |
|---|
