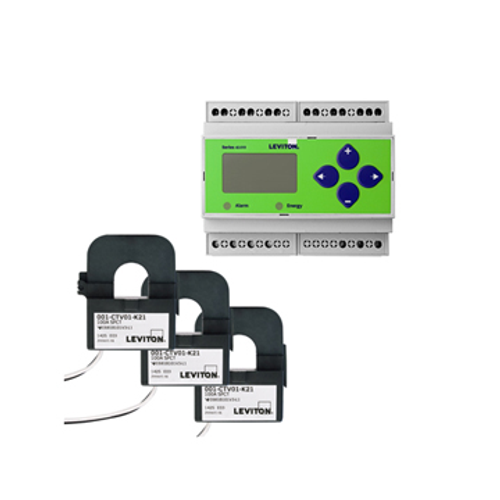

Din-Rail, Series 4100 Submeter, Bi-Directional 3PH 3W/4W Modbus 3 400A Split Core (CT)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,821.09 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
400 Amps
Description
–
Features
Specifications
- DIN rail mount or NEMA 4X enclosure
- Industrial monitoring
- 50/60 Hz
- The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors. Do you have a question about submetering? Contact us to learn more.
- Bidirectional monitoring
- Renewable energy applications such as solar panels and wind
- Industrial temperature range: -22-158°F
- Tenant cost allocation
- Energy conservation and cost reduction
- Measurement and verification
- Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Energy monitoring for AMR/BAS/BMS/EMS systems
- Green building initiatives and government mandates
- Load profiling and benchmarking
- Rogowski CT Options (20-5,000A)
Specifications
- CTs Included: 3 Split Core CTs
- Voltage: Universal Bi-Directional 3-phase 3W/4W
- Product Line: Series 4100 Kit
- Enclosure: No Enclosure - DIN Rail Mount
- Communication: ModBus/RTU, BACnet MS/TP
- RoHS Compliant: FALSE
- Meter Configuration: Single Meter
- Country of Origin: United States
- Amperage: 400 A
- Product Type: Submeter and Current Transformer(s)
Specs
–
| Amperage: | 400 |
|---|
