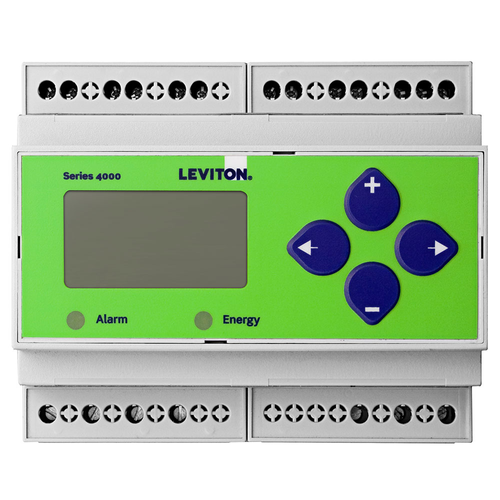

Submeter, Indoor, Din Rail Mount, 90-600vac, Modbus Rtu, Bacnet/ms/tp, Electric Meter, Use Split Core Cts
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$905.40 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
This item replaces: 2N480-12D, 2N480-8D, 2N480-4D, 2N480-2D, 2N480-1D, 1N240-1D, 2N208-8D, 1N240-8D
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5000 Amps
Description
–
Features
Specifications
- DIN rail mount for easy installation
- User-enabled password protection to protect meter from tampering
- The VerifEye Series 4100 Meters feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meters measure power imported from the utility grid and power exported from renewable energy sources like photovoltaic systems. This allows facility managers to properly track energy received and delivered.
- BTL certified
- Optional outdoor NEMA 4X enclosure
- cULus rated
- CE compliant
- ANSI 12.20 0.2% accuracy, IEC 62053-22 Class 0.2S
- CSI approval for California Solar Initiative
- Bright, backlit LCD for insta llation in dark areas and viewing real time data
Specifications
- Country of Origin: United States
- Meter Configuration: Single Meter
- CTs Included: No Meter Only
- Communication: ModBus/RTU, BACnet MS/TP
- RoHS Compliant: TRUE
- Enclosure: No Enclosure - DIN Rail Mount
- Voltage: 90-600 VAC
- Product Line: Series 4100
- Product Type: Electric Submeter
- Amperage: works with 100 A - 5000 A Split Core
Specs
–
| Amperage: | 5000 |
|---|
