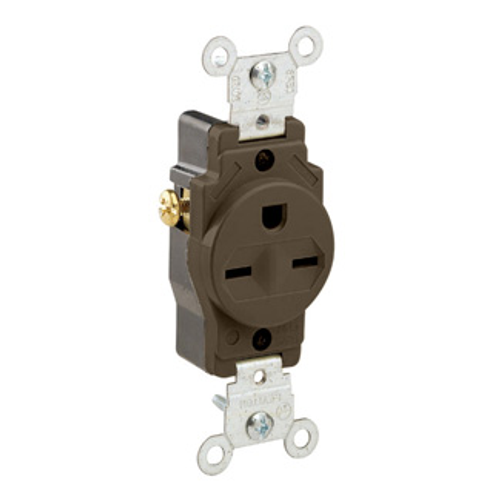

Main product image of Single Receptacle Outlet, Smooth Face, 15A, 250V Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding (Brown)
Magnifying glass
Hover image to zoom
Home
Electrical Supplies
Electrical Receptacles
Single Receptacles

Single Receptacle Outlet, Smooth Face, 15A, 250V Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding (Brown)

Brand:
Leviton
SKU:
5029
Rating:
(0)
Q&A:
(0)
Single Receptacle Outlet, Smooth Face, 15A, 250V Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding (Brown)
Magnifying glass
Hover image to zoom
$4.47 each
Out of Stock
Out of Stock
Get it Wed, Jun 4 - Wed, Jun 11
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Description

–
Features
  • Feature 4: Smooth Face
  • Wire: 3
  • At Rated Voltage: 1-1/2 HP
  • Grounding Screw: Brass 8-32
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • Product ID: Ratings are permanently marked on device
  • Flammability: Rated V-2 per UL 94
  • NOM: 57
  • Color: Brown
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Country of Origin: United States
  • Amperage: 15 A
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Strap Material: Zinc-Plated Steel
  • Face Material: Nylon
  • RoHS Compliant: TRUE
  • Pole: 2
  • Terminal Screws: Brass 8-32
  • Line Contacts: Brass Triple Wipe .031 Thick
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • Voltage: 250 VAC
  • Current Limiting: Full Rated Current
  • Grounding: Self-Grounding
  • Device Type: Single Receptacle Outlet
  • Termination: Side Wire
  • Operating Temperature: -40 °C to 60 °C
  • Terminal Accom.: 14-10 AWG
  • Body Material: Nylon
  • Screw Terminal Torque: 14-18 in-lbs
  • Warranty: 10-Year Limited
  • Dielectric Voltage: Withstands 2000V per UL498
  • Grade: Commercial Specification Grade
