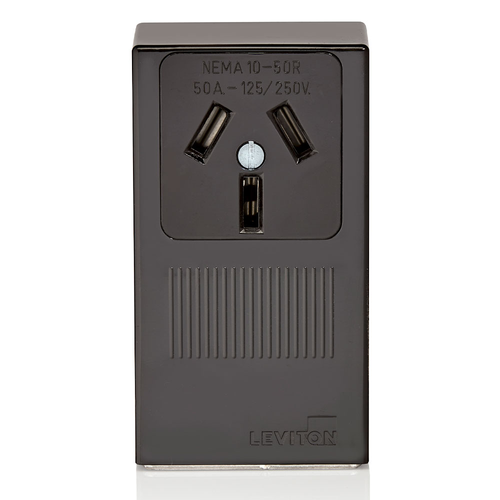

50A Thermoplastic Power Single Outlet/receptacle, Grounding (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$8.11 each
In Stock
Get 13 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
Black
50 Amps
Description
–
Features
Specifications
- 10-50R
- Durable Built of durable thermoplastic construction
- Convenient Equipped w/ heavy-gauge, double-wire alloy contacts
- Easy Terminals marked for easy identification and fast wiring
Specifications
- Wire: 3
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Operating Temperature: -40 °C to 60 °C
- Current Limiting: Full Rated Current
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- ANSI: C-73
- NEMA: WD-6
- Terminal Accom.: #4 - #8AWG
- Face Material: Thermoplastic
- UL498: File E13399
- Product ID: Ratings are permanently marked on device
- Body Material: Thermoplastic
- NOM: 57
- Dielectric Voltage: Withstands 2000V per UL498
- Amperage: 50 A
- Voltage: 125/250 VAC
- Strap Material: Galvanized Steel
- Flammability: Rated V-2 per UL 94
- CSA C22.2 No. 42: File 152105
- At Rated Voltage: 3 HP
- Warranty: 10-Year Limited
- RoHS Compliant: FALSE
- Color: Black
- Grounding: Non-Grounding
- Pole: 3
- Country of Origin: Mexico
Specs
–
| Warranty: | 10 years |
|---|---|
| Country of Origin: | Mexico |
| Poles: | 3 |
| Color: | Black |
| NEMA Rating: | WD-6 |
| Ground: | Non-Grounding |
| Amperage: | 50 |
