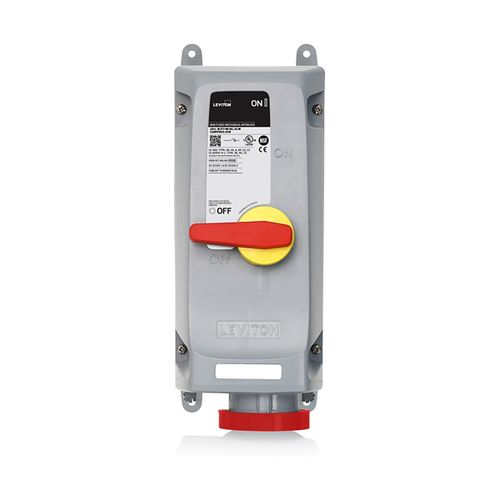

100A 277/480V 3-Phase, IEC 60309-1 & 60309-2, 4P, 5W, Pin & Sleeve Mechanical Interlock (Red), 5100MI7WLEV

Features:

• CSA: C22.2 No. 94.1-07
• IEC Rating: IEC 60309-1, IEC 60309-2, IEC 60309-4
• UL: UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
• Warranty: 5-Year Limited
• UPC: 078477843376
• Amperage: 100 A
• Current Interrupting: Certified for current interrupting at full-rated current and voltage
• Dielectric Voltage: 2200V for 1 minute
• Endurance: 6,000 cycles under load
• Horsepower Rating: 60 HP
• Phase: 3-Phase
• Pole: 4
• SCCR: 65 kA, non-fused
• Voltage: 277/480 VAC
• Wire: 5
• Flammability: Rated V-0 per UL 94
• Gasket Aging: 70 degrees C for 168 hours per UL 50E
• IP Rating: IP66, IP67, IP68, IP69, IP69K
• NEMA Rating: 3R, 4X, 12
• NSF: 14159-1 Hygienic Requirement for the Design of Meat and Poultry Processing Equipment
• Operating Temperature: -40°C to 75°C
• UV Resistance: UV-stabilized F1-rated enclosure
• Contact Material: Nickel-Plated Copper Alloy
• Gasket Material: Buna-N
• Handle Material: PBT+PC with TPE Overmold
• Housing Material: PBT+PC
• Housing Screws: 303 Stainless Steel
• Cold Impact: 5 ft-lb impact at -31°C for 3 hours per UL 746C
• Crush Test: 100 lbs
• Mold Stress Relief: 70°C for 7 hours without deformation
• Color: Red
• Configuration: North American
• Device Type: Non-Fused Mechanical Interlock
