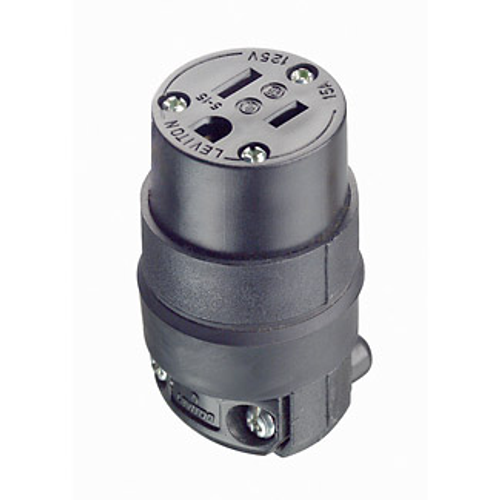

15A, 125V NEMA 5-15R, 2Pole, 3Wire, Connector, Straight Blade, Rubber (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$11.81 each
In Stock
Get 16 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Residential
EPTR Rubber
Black
15 Amps
2 years Warranty
Description
–
Features
Specifications
- 5-15R
- Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Specifications
- Assembly Screws: Steel, Zinc Plated
- UL498: File E13393
- Series: 515PV
- Voltage: 125 VAC
- Grounding: Grounding
- Country of Origin: Mexico
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Cord Range: .245 - .700
- ANSI: C-73
- CSA C22.2 No. 42: File LR-406
- Body Material: EPTR Rubber
- Product ID: Ratings and NEMA I.D. permanently marked on device
- NOM: 57
- Pole: 2
- Operating Temperature: -40 °C to 60 °C
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- NEMA: WD-6
- Color: Black
- Wire Gauge: 18-12 AWG
- Dielectric Voltage: Withstands 2000V per UL498
- Grade: Residential
- Terminal Accom.: 18-12 AWG
- Standards and Certifications: UL/CSA
- RoHS Compliant: FALSE
- Wire: 3
- Warranty: 2-Year Limited
- Blades/Contacts: Brass
- Flammability: Rated V-2 per UL 94
- Amperage: 15 A
Specs
–
| Ground: | Grounding |
|---|---|
| Poles: | 2 |
| Grade: | Residential |
| Material: | EPTR Rubber |
| Color: | Black |
| Amperage: | 15 |
| NEMA Rating: | WD-6 |
| Warranty: | 2 years |
| Country of Origin: | Mexico |
