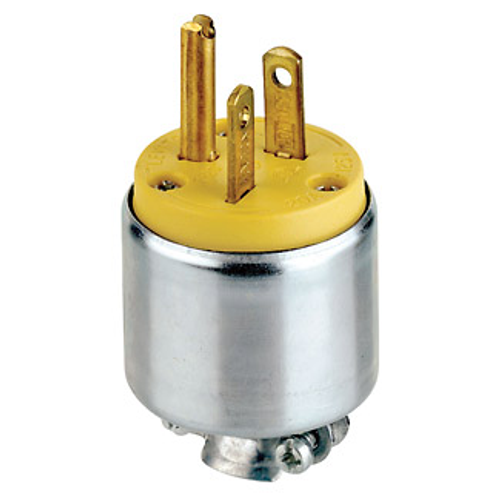

20A, 125V NEMA 5-20p, 2-pole, 3-wire Grounding Plug, Straight Blade, Armored (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$7.82 each
In Stock
Get 21 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
PVC, Steel
Yellow
2 years Warranty
20 Amps
Description
–
Features
Specifications
- 5-20P
Specifications
- UL498: File E13393
- Blades/Contacts: Brass
- Operating Temperature: -40 °C to 60 °C
- CSA C22.2 No. 42: File LR-406
- Terminal Accom.: 18-12 AWG
- Cord Range: .245 - .655
- Wire: 3
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- NOM: 57
- Voltage: 125 VAC
- Warranty: 2-Year Limited
- RoHS Compliant: FALSE
- Dielectric Voltage: Withstands 2000V per UL498
- Flammability: Rated V-2 per UL 94
- NEMA: WD-6
- ANSI: C-73
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Current Interrupting: Certified for current interrupting at full rated current
- Pole: 2
- Grounding: Grounding
- Color: Yellow
- Assembly Screws: Steel, Zinc Plated
- Body Material: PVC/Steel
- Amperage: 20 A
- Country of Origin: Mexico
Specs
–
| NEMA Rating: | WD-6 |
|---|---|
| Material: | PVC Steel |
| Country of Origin: | Mexico |
| Poles: | 2 |
| Color: | Yellow |
| Ground: | Grounding |
| Warranty: | 2 years |
| Amperage: | 20 |
