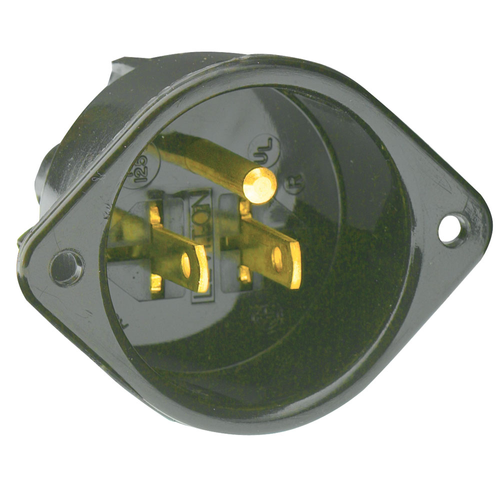

15A, 125V Flanged Inlet Receptacle, Straight Blade, Commercial Grade
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.82 each
Out of Stock
Get it Wed, Jul 1 - Wed, Jul 8
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
- RoHS Compliant: TRUE
- Termination: Back
- Terminal Accom.: 18-12 AWG
- Body Material: Nylon
- Voltage: 125 VAC
- UL: Listed
- Strap Material: Thermoplastic Nylon
- Wire: 3
- Face Material: Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- ANSI: C-73
- NEMA: WD-6
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal ID: Brass-Hot, Green-Ground, White-Neutral
- Color: Black
- Cord Range: .245 - .700
- Cutout Size: 1.83 � to 1.85 �
- Operating Temperature: -40 °C to 60 °C
- Amperage: 15 A
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Country of Origin: Mexico
- NOM Certified: 57
- Flammability: Rated V-2 per UL 94
- CSA C22.2 No. 42: File LR-406
- Pole: 2
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Grounding: Grounding
Specs
–
| Country of Origin: | Mexico |
|---|
