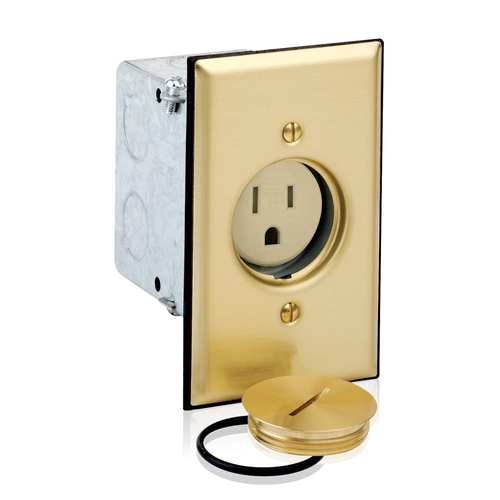

15A 1-Gang Floor Box Receptacle/outlet Assembly, Tamper-resistant
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.99 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Nylon
15 Amps
Ivory
2 years Warranty
Description
–
Features
Specifications
- For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
- 5-15R
Specifications
- Face Material: Nylon
- At Rated Voltage: 1/2 HP
- RoHS Compliant: FALSE
- Terminal Accom.: 14-10 AWG
- Amperage: 15 A
- Pole: 2
- Flammability: Rated V-2 per UL 94
- NEMA: WD-1 & WD-6
- Wire: 3
- Floorplate Material: Solid Brass 0.060 In Thick
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Body Material: Nylon
- Country of Origin: Mexico
- Termination: Back & Side
- Voltage: 125 VAC
- Certification/Listing: cCSAus, NOM-ANCE
- Cap Material: Brass
- Feature: Tamper-Resistant
- Grounding Screw: Steel
- Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
- Warranty: 2-Year Limited
- Type: Wood Frame
- Dielectric Voltage: Withstands 2000V per UL498
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Strap Material: Zinc-Plated Steel
- Line Contacts: Brass Triple-Wipe
- Mounting Screws: Steel
- Color: Ivory
- ANSI: C-73
- Operating Temperature: -40 °C to 75 °C
Specs
–
| NEMA Rating: | WD-1 |
|---|---|
| Terminations: | Side Wire Back Wire |
| Poles: | 2 |
| Country of Origin: | Mexico |
| Material: | Nylon |
| Amperage: | 15 |
| Color: | Ivory |
| Warranty: | 2 years |
