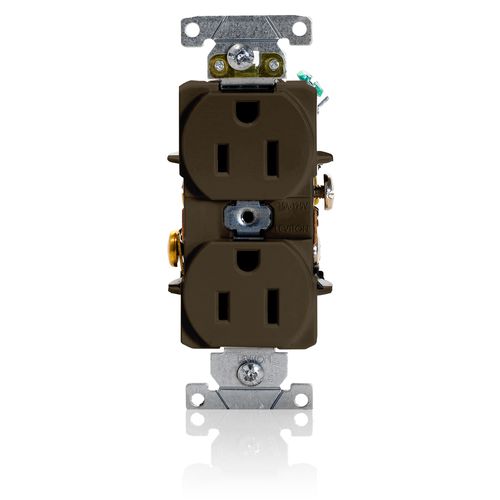

Duplex Receptacle Outlet, Smooth Face, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.17 each
In Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- 5-15R
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
- Face Material: PBT Polyester Blend
- Amperage: 15 A
- Grounding: Self-Grounding
- Body Material: PBT Polyester Blend
- RoHS Compliant: FALSE
- Device Type: Duplex Receptacle Outlet
- UL Fed Spec WC-596: File E13399
- At Rated Voltage: 1/2 HP
- Color: Brown
- Product ID: Ratings are permanently marked on device
- Dielectric Voltage: Withstands 3000V min
- Wire: 3
- Terminal Accom.: #14-#10 AWG
- Screw Terminal Torque: 14-18 in-lbs
- Ground Clips: Brass
- Termination: Back and Side Wire
- Line Contacts: 0.030" Phosphor Bronze
- Operating Temperature: -40 °C to 75 °C
- Pole: 2
- NOM: 57
- Terminal Screws: #8 Triple-Drive Brass
- Country of Origin: Mexico
- Strap Material: Galvanized Steel with Riveted Ground Contacts
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
- Warranty: 10-Year Limited
- Voltage: 125 VAC
- ANSI: C-73
- Grounding Screw: #8 Hex Head, Triple-Drive Brass
- Feature 4: Smooth Face
- Clamp Nuts: Steel (Galvanized G60)
- Grade: Heavy-Duty Industrial Specification Grade
- NEMA: WD-1 & WD-6
- UL498: File E13399
- CSA C22.2 No. 42: File 152105
- Flammability: Rated V-0 per UL 94
Specs
–
| Country of Origin: | Mexico |
|---|
