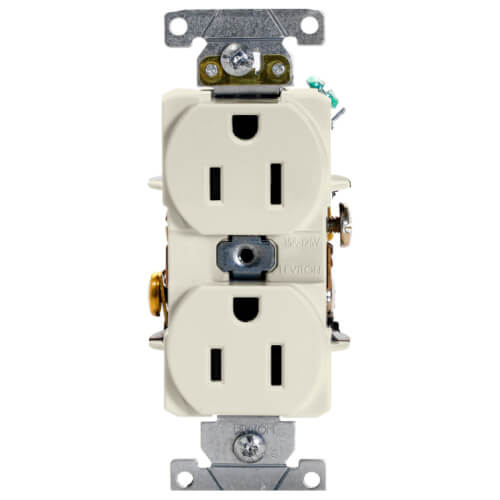

Heavy-Duty Industrial Specification Grade, Duplex Receptacle, 2P, 15A - Light Almond (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond

Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.

Specifications:

• AC Horsepower Rating: 1/2 HP
• Amperage: 15 A
• Dielectric Voltage: Withstands 3000V min
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 75°C
• Termination: Back and Side Wire
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade
• Grounding: Self-Grounding
• NEMA: 5-15R

Standards & Certifications:

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
